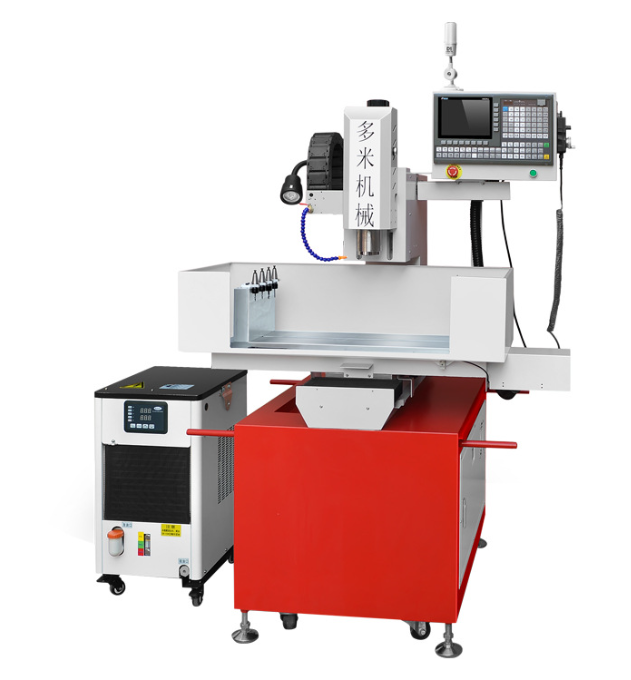

This is a small automatic tool changing high-speed drilling machine, three axes effectively form X axis 400 mm, Y axis 300 mm, Z axis 120 mm.

Automatic tool changing high-speed drilling machine adopts 60,000rpm high-speed spindle, processing aperture range 0.07mm - 3.0mm, equipped with straight-line tool library, to achieve multi-specification aperture automatic switching tool processing, easy and quick tool replacement, improve processing efficiency.

The 60,000-rpm high-speed spindle has high efficiency in drilling small holes, accurate positioning, and the resulting product has almost no burrs. High-speed spindle with internal water cooling cycle to protect the spindle for a long time high-speed operation, control the spindle temperature, improve processing stability. The processing range of small automatic tool changing high-speed drilling machine is also relatively wide, whether it is stainless steel with strong viscosity and density, titanium alloy, as well as ordinary steel, aluminum, copper and other metal products, or non-metallic plastics, graphite, magnetic and other products can be processed.

Small automatic tool changing high-speed drilling machine design T-slot table clamping products, easy to compare whether the standard square products or special-shaped structure products can be processed.Each drive shaft of the automatic tool changing high-speed drilling machine is controlled by absolute servo motor, and the positioning accuracy is within 0.02mm. The lead screw and guide rail are made of Taiwan Shangyin brand with strong accuracy retention. Each drive shaft is equipped with automatic lubricating oil pump system, which can pump oil regularly and quantitatively without manual maintenance. The standard CNC machining center numerical control system selected by the small automatic tool change high-speed drilling machine can be programmed by computer or manually, and supports the direct import of CAD drawing files into the automatic generation program without professional programming personnel.

Small automatic tool change high-speed drilling machine before factory with the laser interferometer imported from the United States to detect the accuracy and compensation, through the sample processing run 48 small time and space run test, equipment package sent to the door.
