Today to introduce a round pipe tooling case.

The customer's product is the carbon steel pipe processing of auto parts, and then its other holes have been made in the laser blanking time. Then we just need to make two M3 holes in the front of it.

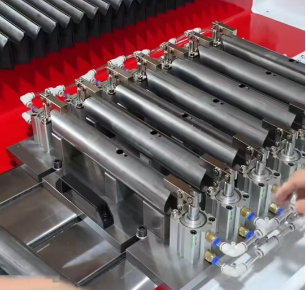

Taking into account the processing efficiency of our equipment is relatively high, then you cycle to load and unload materials, it will affect the overall processing time. Therefore, the customer has set the circular processing mode of left and right double stations. When the spindle is processed on the left side, the worker can come to the right side for loading and unloading. When the same spindle is moved to the right side for processing, the worker goes to the left side for loading and unloading. For his tooling, seven products are placed separately in each station of the two tooling, and each product is positioned separately to ensure a precision of processing.

When we need to load and unload materials every time, the tooling of the round tube only needs to manually tighten the valve, and the product can be compressed by manually sliding apart, and then we can also connect the solenoid valve to the system. All you have to do is say the whole thing is drilled, and it pops.

Round tube tooling is more convenient, we can look at the details of this tooling, because it has a positioning slot, then we only need to fasten the positioning slot to a positioning position of the base, and directly press it to load and unload, or very convenient, so if there is a round tube to do tooling customers, you can refer to such a clamping mode.
