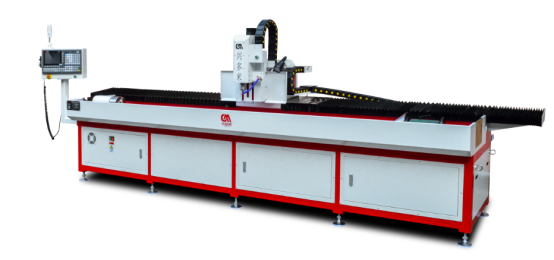

Today, let's take a look at the 4 CNC round pipe drilling and milling machines customized for Guangzhou customers.

The effective processing stroke of CNC round pipe drilling and milling machine is X axis 3 meters, Y axis 300 mm ,Z axis 200 mm, 360 degree automatic rotation of A axis, the fourth axis uses harmonic reducer and servo motor with chuck automatic rotation, with pneumatic tail top clamping products, convenient and fast.

Carbon fiber drilling and milling for new energy vehicles and UAV components, using 24,000 RPM precision high-speed spindle processing, processing burr free finish is good, high efficiency. Equipment processing range is wide, whether it is stainless steel, titanium alloy, carbon fiber, steel, aluminum, copper materials can be processed.

The new sliding table of CNC round pipe drilling and milling machine with V-bearing support, bearing support can be universal outside diameter 20-80 mm products. When the outside diameter of the product changes, it can be adjusted before and after, and when the length of the product changes, it can be adjusted left and right, and it can be moved to the appropriate position to fix it, without straightening the accuracy again, which reduces the workload of workers and saves costs.

The selected CNC five-axis machining center numerical control system can be programmed by computer or manually, and supports the direct import of CAD drawing files into the automatic generation program without professional programming personnel.

Each drive shaft of the CNC round pipe drilling and milling machine is controlled by absolute servo motor, and the positioning accuracy is less than 0.02mm. The screw/guide is made of Taiwan Shangyin brand with strong stability. Each drive shaft is added with automatic lubricating oil pump, the system timing quantitative oil, no manual maintenance.

Before the CNC round pipe drilling and milling machine leaves the factory, the API laser interferometer imported from the United States is used to detect and compensate the accuracy, and 48 small time and space runs are tested through the sample processing. Equipment package delivered to your door.
