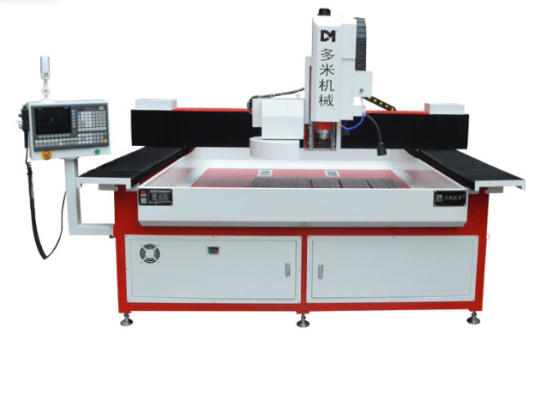

Today we are going to introduce the CNC gantry automatic tool changing machine of Guangdong multi-meter intelligent equipment. The machine tool body of this CNC gantry type automatic tool changing machine adopts a widening, thickening and aggravating moving beam gantry type structure, and the whole bed passes through high temperature tempering to stress, making the machine rigidity, better stability and small vibration.

X axis of CNC gantry automatic tool changing machine We use double drive transmission, with heavy load linear slide, with imported helical rack, double sets of transmission mechanism, so that the machine runs smoothly and moves faster.

The stroke of this CNC gantry type automatic tool changer is 1m*2.1m, which is suitable for large plate finishing, high steel mechanical spindle, and it is effortless to make steel parts, which can realize multi-process drilling and tapping milling and has strong versatility.

The spindle of CNC gantry automatic tool changing machine is equipped with a servo direct connection tool library, which can realize the automatic tool changing function through the system program, and is suitable for doing multi-aperture and multi-specification product finishing. When the spindle is in any position, the tool library is followed, and the next process can be realized by changing the tool in place, with strong processing stability and higher efficiency.

After changing the knife, the knife library is closed, and you do not need to worry about the cutting of the residual into the knife library surface, this CNC gantry type automatic knife changing machine is equipped with the function of flushing and blowing.

After the CNC gantry automatic tool changing unit is installed, the accuracy is tested with a laser laser meter, and the sample is run until the test is the shipping standard, and it can be packed and shipped. To the customer's factory does not need to install again, boot can be used, only need to play a level can be. You do not need to worry about difficult operation, we have professional technical personnel on-site training, until customers use it.

CNC gantry type automatic tool changing machine system humanized, CAD drawing file can be directly imported into the generation program, programming free equivalent to fool operation.
