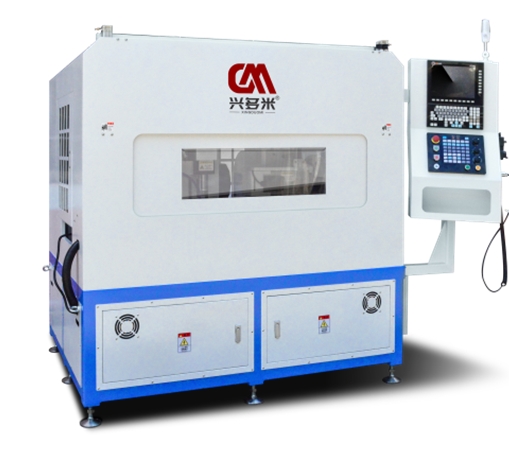

This is a set of automatic feeding CNC drilling and tapping cutting machine , workers only need to put the uncut aluminum profile on the feed rack.

　　This CNC drilling and tapping cutting machine can automatically process and cut small parts according to the hole position and product length on the drawing, and the cutting accuracy can be controlled within 0.05mm.

　　This CNC drilling and tapping cutting machine adopts bus system control, the power part is composed of 3 A axes, 3 X axes, 3 Y axes, 3 Z axes, a total of 12 groups of transmission mechanisms, three sets of power spindles.

　　The drive shaft of each unit adopts absolute servo motor, which can be connected or separated with the transmission mode of precision slide rod, and has the function of self-locking and protecting lock.

　　Three sets of power spindle and drilling, tapping, cutting, joint movement at the same time processing, no need to wait for any one of the links, a clamping to complete multiple processes processing, saving the time of secondary transfer and unloading.

　　The whole processing process does not need manual operation, which can realize 24 hours non-stop machining.

　　Three sets of A shaft and feed clamping mechanism in one, independent transmission, so that cutting almost "zero feed, zero tail", to solve the problem of waste of tail material in the whole processing process. In addition, the multi-channel combined control mode, just a simple change of tooling and processing procedures, 10-200 mm width range of products can be processed.

　　In terms of safety protection, in addition to mechanical intelligent collision prevention and emergency braking, cutting saw blade with transparent soft rubber protection, this CNC drilling and tapping cutting machine has a visible safety lifting door on the front, and the side door also has a safety sensor to ensure that the entire processing process is safe and efficient.
