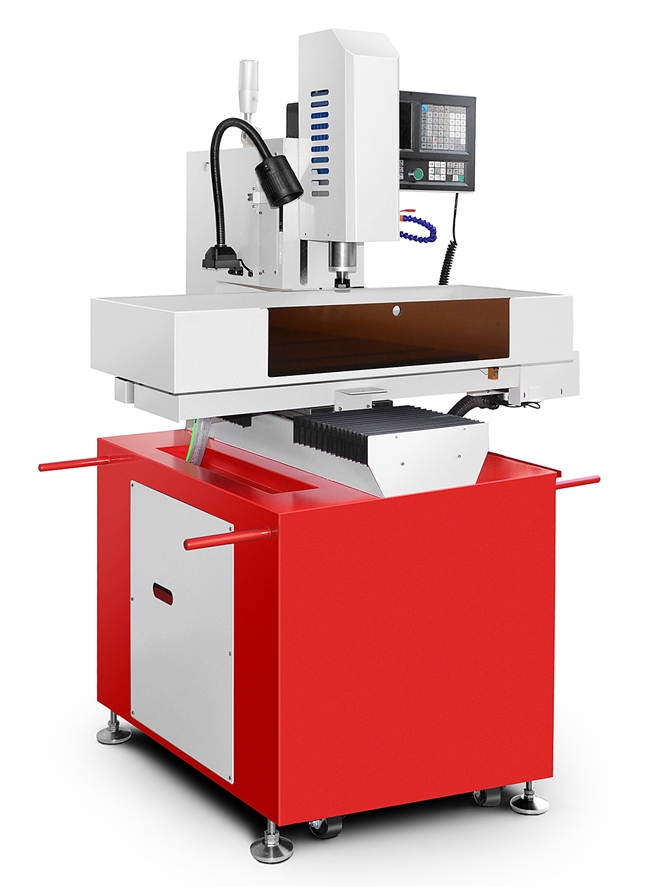

This is a small high-speedCNC drilling machine, three axis effective processing stroke is X axis 600 mm , Y axis 300 mm , Z axis 120 mm.

      T-slot table can be installed a variety of standard and shaped products, spindle speed up to 60,000 RPM, cutting force is strong and not easy to break the tool. The processing capacity of this CNC drilling machine aperture is between 0.07-3.0mm , can process aluminum, steel and stainless steel a variety of high hardness products, made of products with smooth inner wall without burrs, widely used in medical equipment parts, mechanical molds and auto parts of small hole drilling processing.

      High-speed spindle with internal water cooling cycle, protect the spindle for a long time high-speed operation, spindle temperature constant temperature control is effective, extend the life of the spindle. The high-speed spindle adopts pneumatic one-button tool change, which is convenient and fast to replace the tool.

     The automatic tool change system can also be installed according to the aperture requirements of the product to be processed, and the automatic tool switching of multi-specification caliber can be realized. The drive shaft is controlled by absolute servo motor, and the positioning accuracy is up to 0.02mm.

     The selected CNC machining center numerical control system can be programmed by computer or manually, and supports the direct import of CAD drawing files into automatic generation programs, without professional programmers, and the system can store tens of thousands of programs.

     Before the CNC drilling machine leaves the factory, the API laser interferometer imported from the United States is used to detect the accuracy and compensation, and 48 small time and space runs are tested after sample processing. CNC drilling machine package delivered to the door, and free on-site installation and debugging and training of technical personnel.
