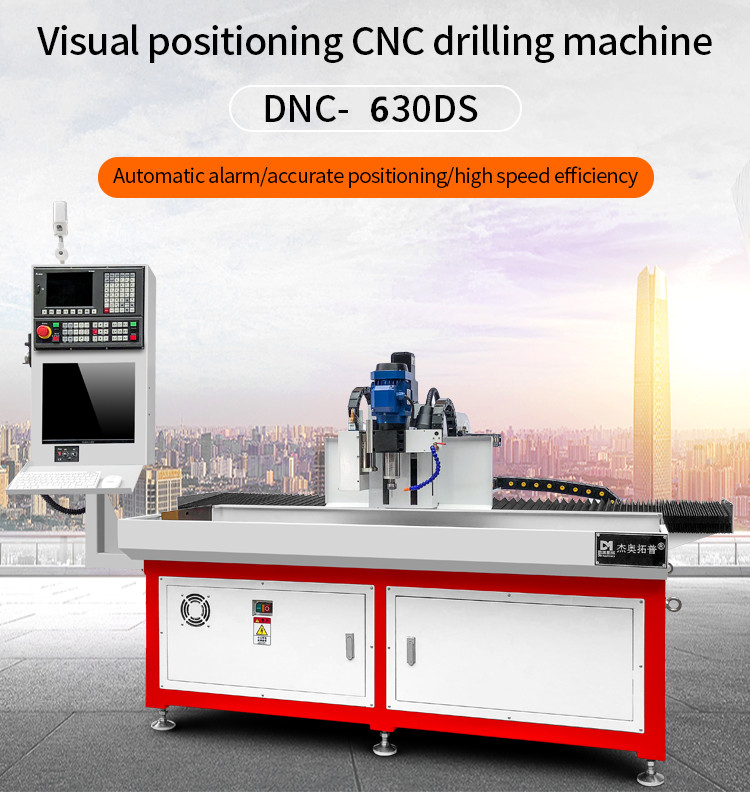

DNC-630DS CCD Visual Positioning 3 Axis Drilling Reaming Machine Precision Metal

Steel Aluminium Copper Auto CNC Drill Press

DUOMI CNC’s CCD Visual Positioning Drilling Machine ensures ultra-precise hole drilling using advanced visual alignment, improving efficiency and guaranteeing consistent, high-quality results.

Machine type	DNC-630DS
XYZ three-axis machining stroke0	X800mm Y300mm Z200mm

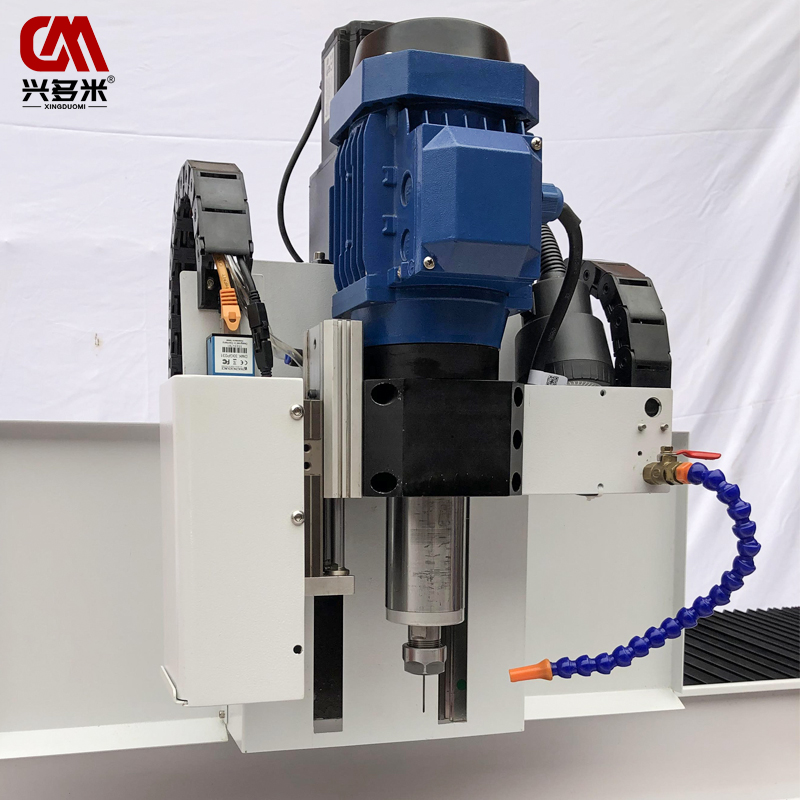

Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
chamfer	1~20mm
Tool magazine	Manual tool change

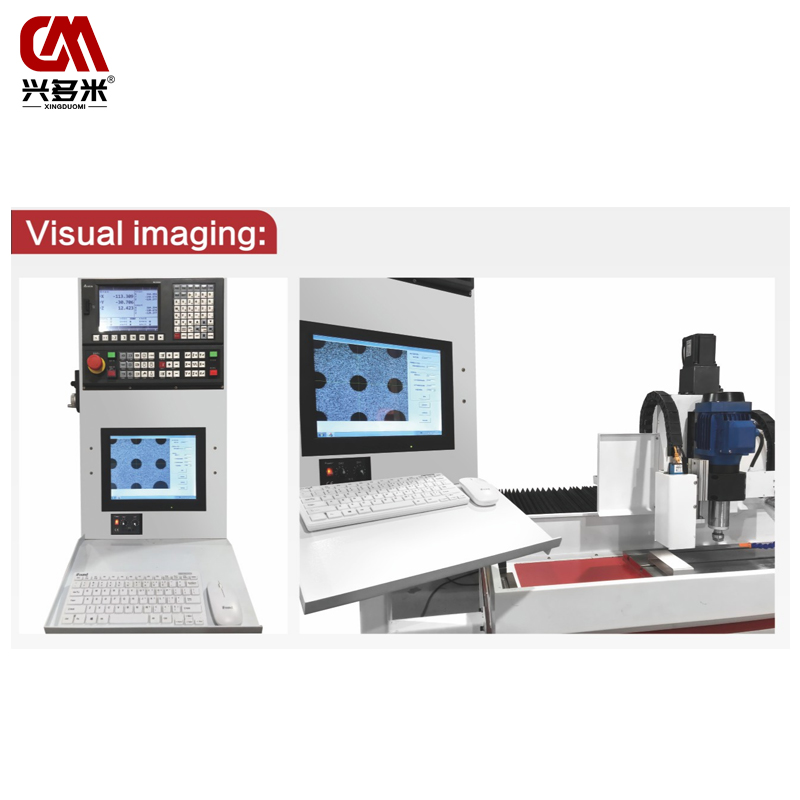

CCD visual positioning	Automatic identification of hole positions
Repeated positioning accuracy	±0.02mm
Table form	T-slot table/Slide table (optional on demand)

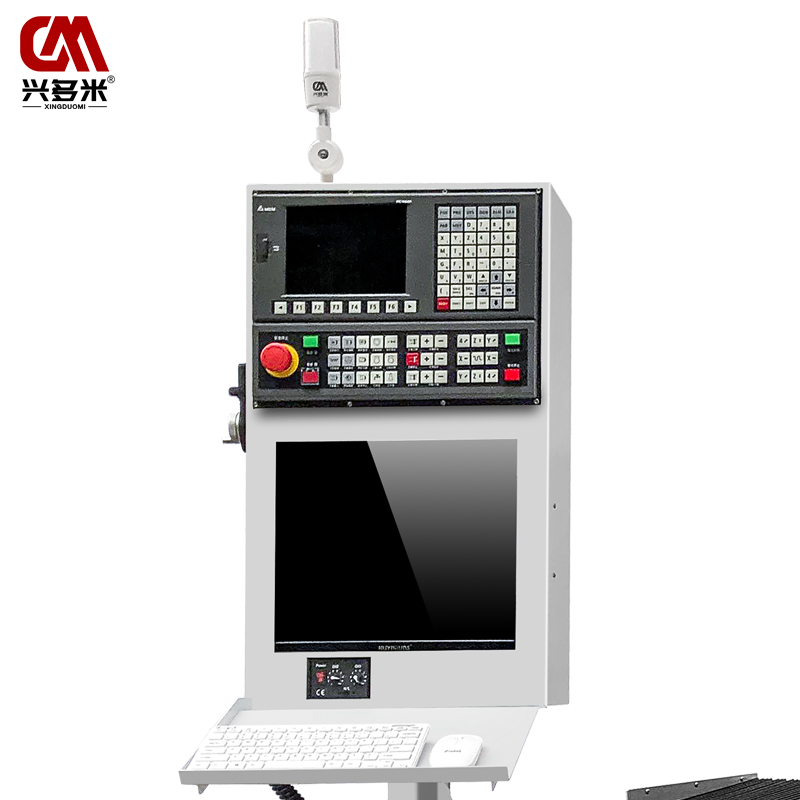

Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 600KG
Floor space	120015001700mm
