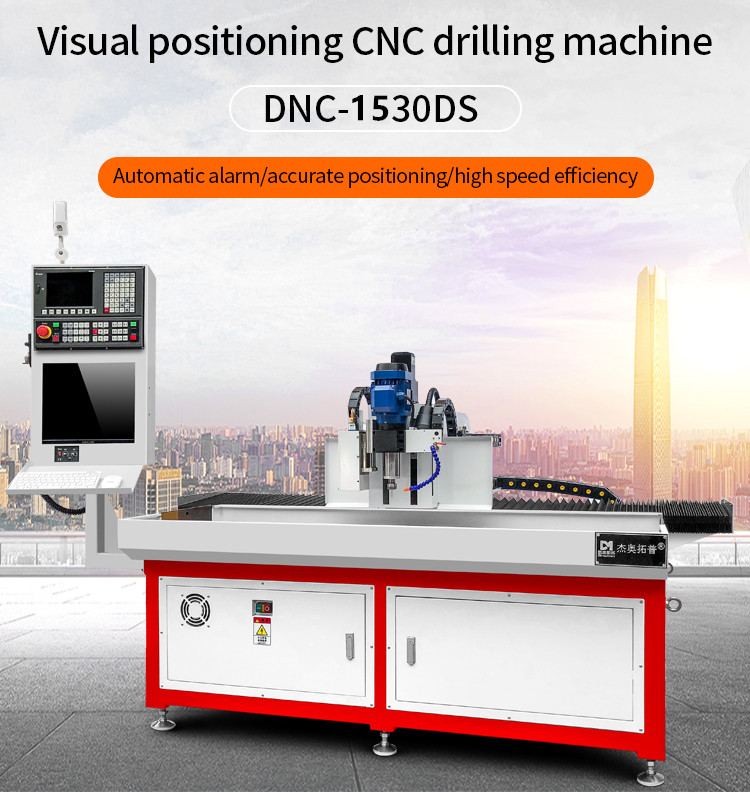

DNC-1530DS CCD Visual Positioning 3 Axis Drilling Reaming Machine Precision Metal

Steel Aluminium Copper Auto CNC Drill Press

DUOMI CNC’s CCD Visual Positioning Drilling Machine uses advanced visual alignment for ultra-precise hole drilling, ensuring high efficiency, accuracy, and consistent quality.

Machine type	DNC-1530DS
XYZ three-axis machining stroke0	X2800mm Y300mm Z200mm

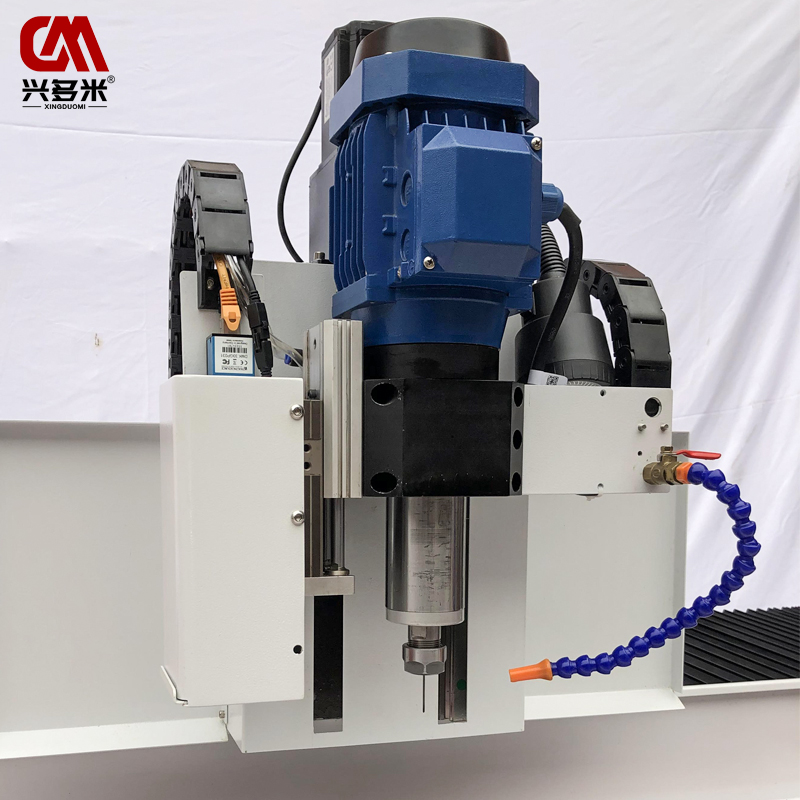

Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
chamfer	1~20mm
Tool magazine	Manual tool change

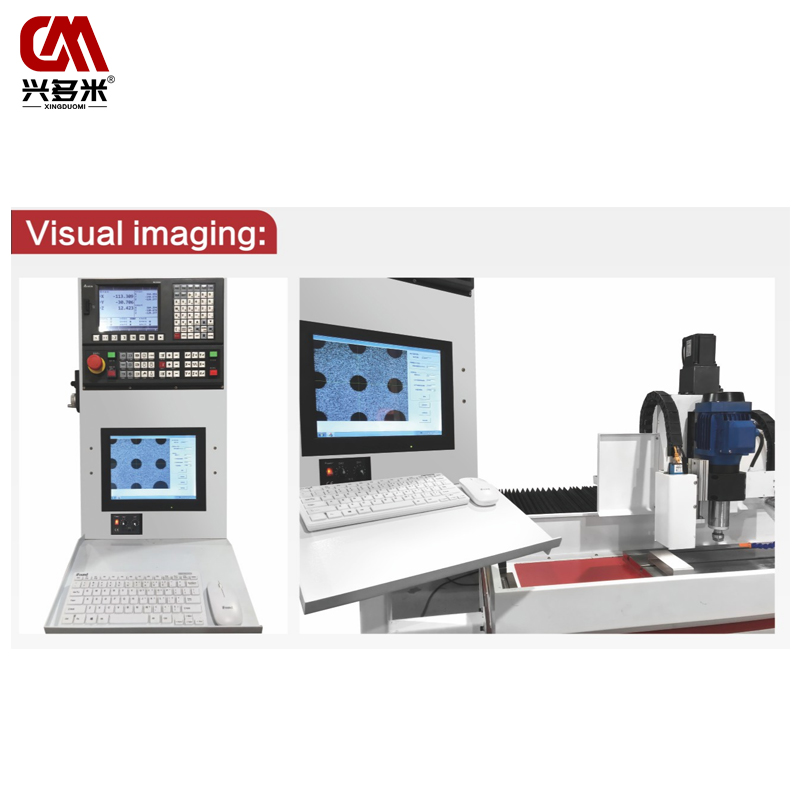

CCD visual positioning	Automatic identification of hole positions
Repeated positioning accuracy	±0.02mm
Table form	T-slot table/Slide table (optional on demand)

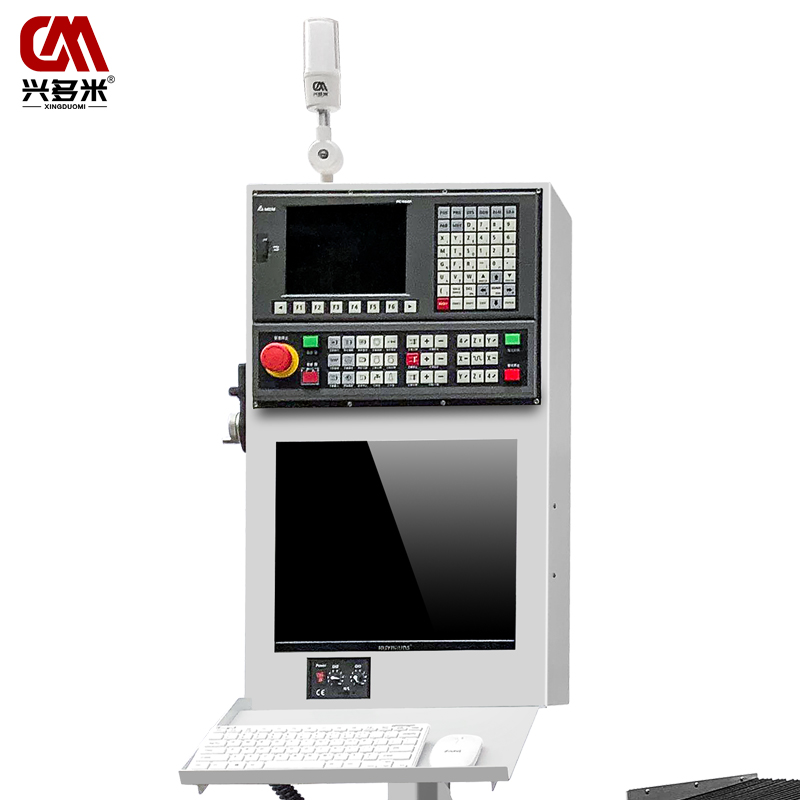

Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1300KG
Floor space	300015001700mm
