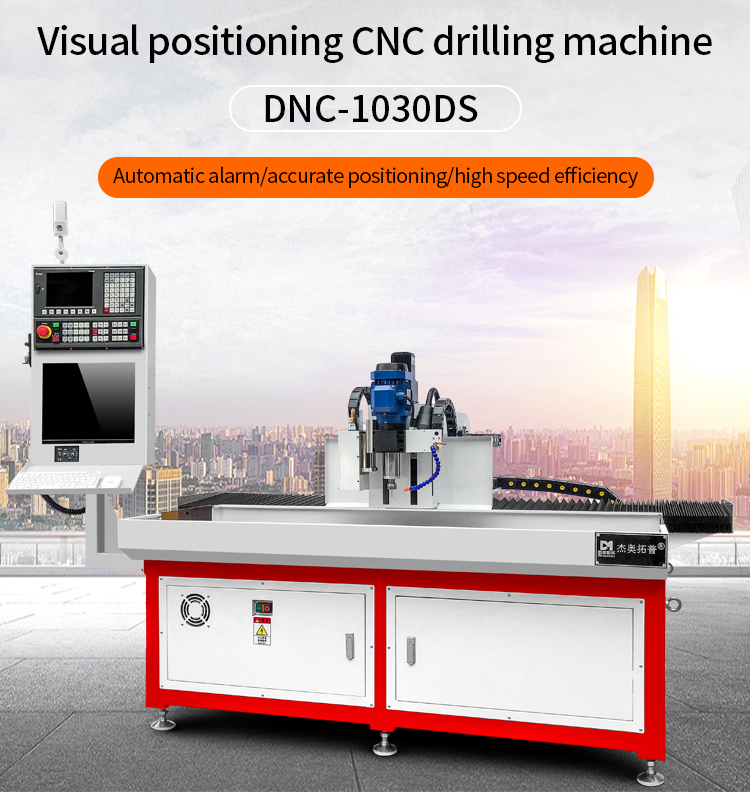

DNC-1030DS CCD Visual Positioning 3 Axis Drilling Reaming Machine Precision Metal

Steel Aluminium Copper Auto CNC Drill Press

DUOMI CNC CCD Visual Positioning Drilling Machine delivers precise hole alignment, fast setup, and stable performance for metal parts requiring high-accuracy drilling.

Machine type	DNC-1030DS
XYZ three-axis machining stroke0	X1800mm Y300mm Z200mm

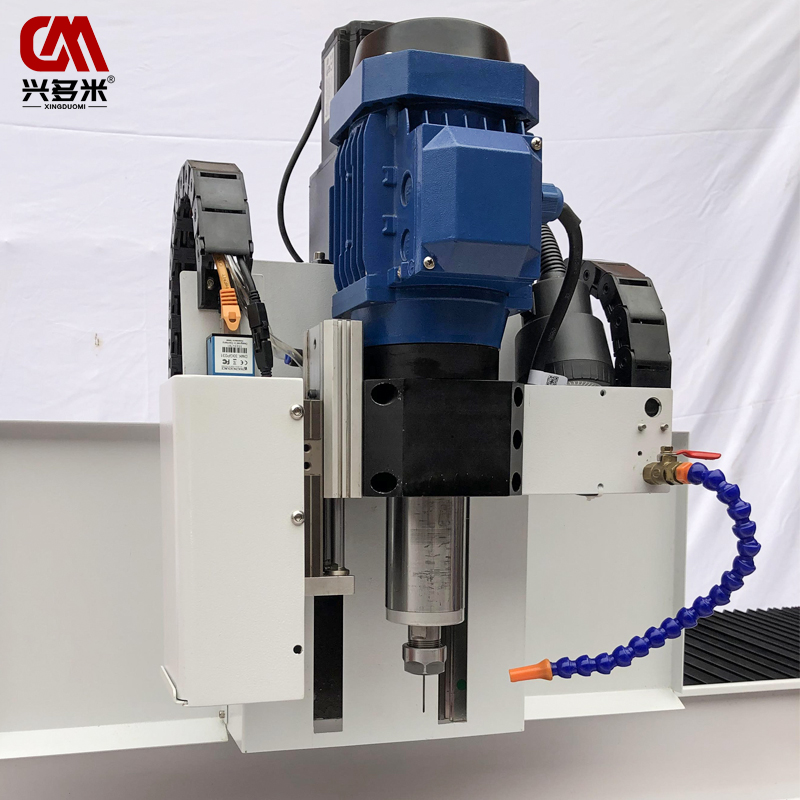

Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
chamfer	1~20mm
Tool magazine	Manual tool change

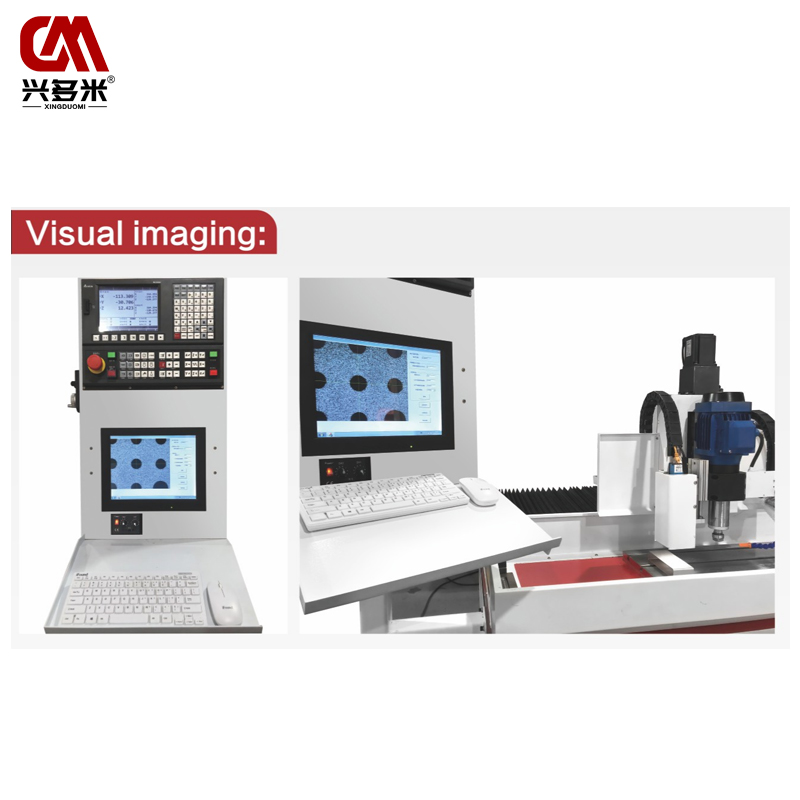

CCD visual positioning	Automatic identification of hole positions
Repeated positioning accuracy	±0.02mm
Table form	T-slot table/Slide table (optional on demand)
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1000KG
Floor space	250015001700mm
