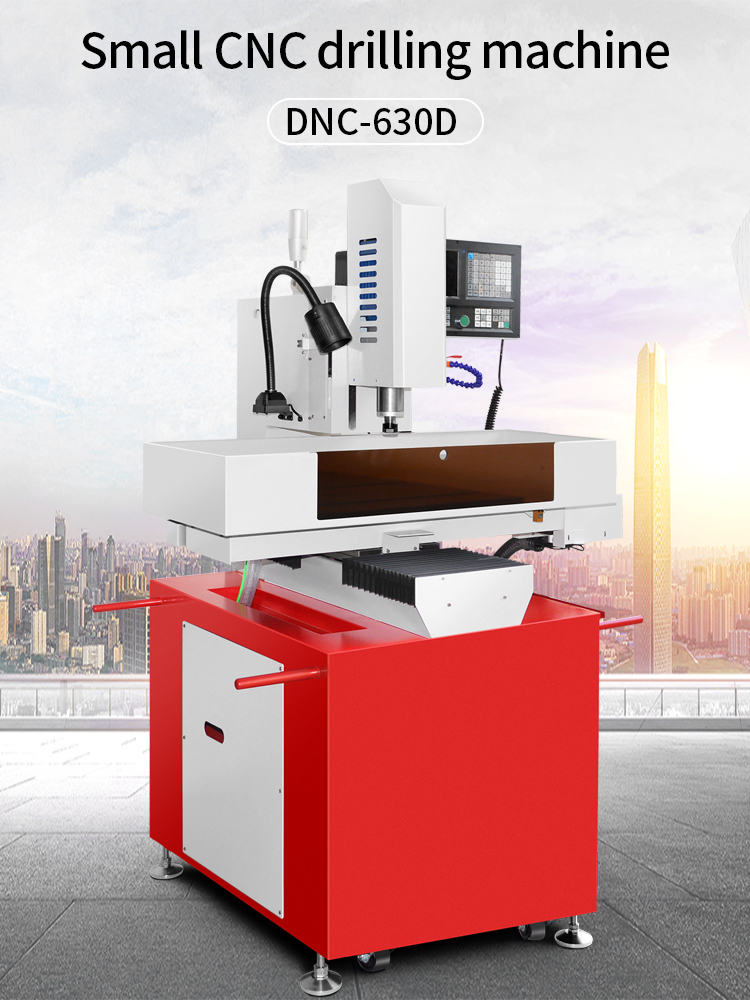

DNC-630D Precision Automatic CNC Copper Gas Stove Cover Hole Drilling Drill Press 1-14mm Manual Tool Change Drilling Machine

DUOMI CNC’s 1-14mm Manual Tool Change Drilling Machine delivers precise, versatile drilling for metal parts, ensuring reliable performance, consistent quality, and efficient production.

Product Paramenters


Machine type	DNC-630D

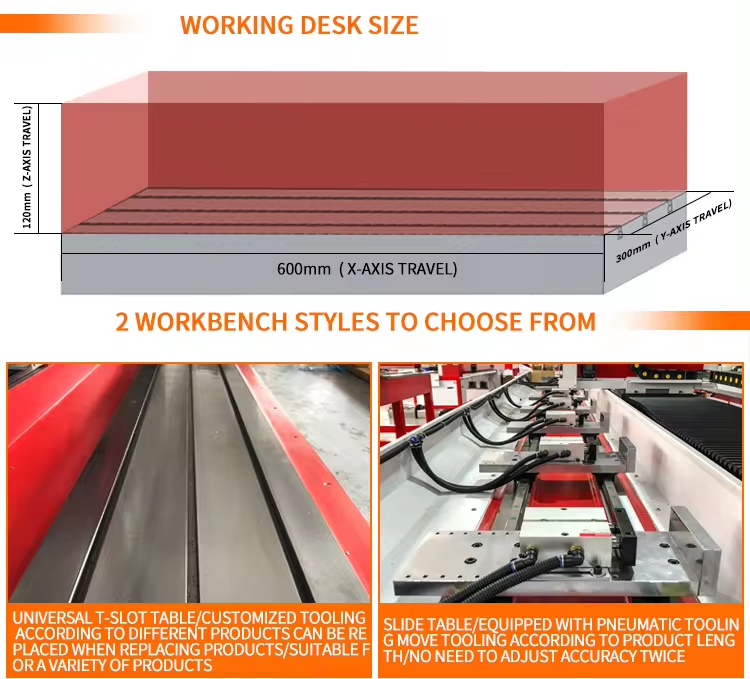

XYZ three-axis machining stroke0	X600mm Y300mm Z120mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~14mm
Chamfer diameter range	1~14mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	600*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 500KG
Floor space	100010001700mm
