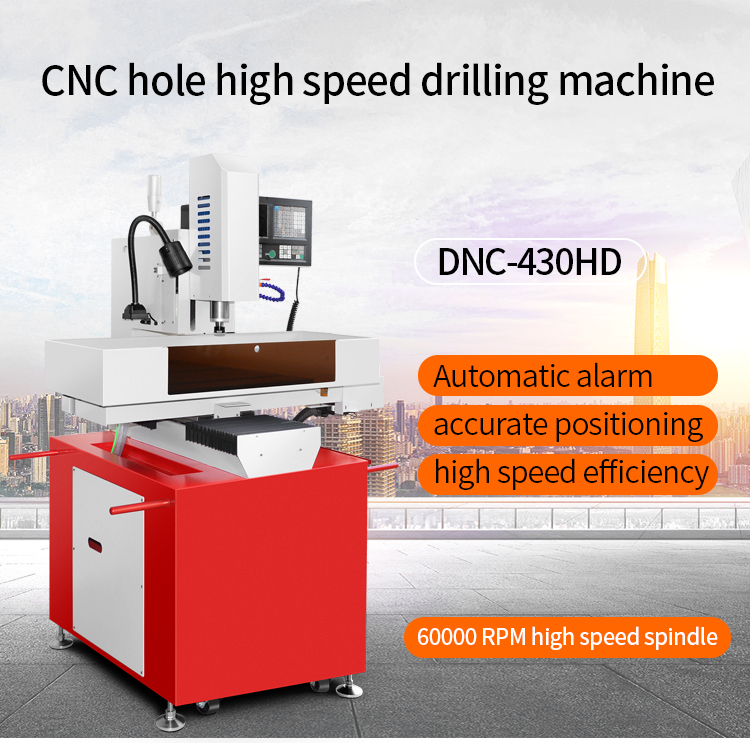

DNC-430HD Precision Small Micro Hole 0.15mm-4.0mm Drill Press CNC Aluminium

Steel Copper Metal Sheet Vertical Drilling Machine

DUOMI CNC’s Small Micro Hole Drilling Machine provides ultra-precision drilling for tiny metal components, ensuring consistent quality and high efficiency in production.

Product Paramenters

Machine type	DNC-430HD
XYZ three-axis machining stroke0	X400mm Y300mm Z120mm
Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	Collet reducer sleeve
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~4.0mm
Tool magazine	Pneumatic press knife change
Repeated positioning accuracy	±0.02mm
Table size	400*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 500KG
Floor space	8509001700mm
