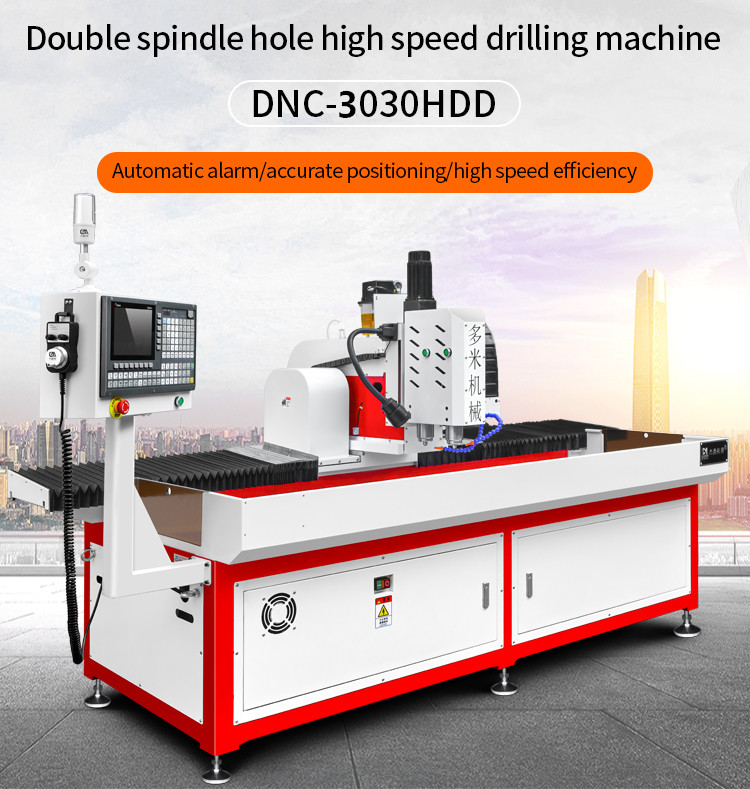

DNC-3030HDD High Speed Precision CNC Aluminium Steel Copper Metal Plate Pipe

Profile Small Hole 2 Spindle Drilling Machine

DUOMI CNC’s Small Micro Hole Drilling Machine delivers ultra-precision drilling for miniature metal parts, ensuring reliable performance, high efficiency, and consistent quality.

Machine type	DNC-3030HDD
XYZ three-axis machining stroke0	X3000mm Y300mm Z200mm
Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	Collet reducer sleeve
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~4.0mm
Tool magazine	Pneumatic press knife change
Repeated positioning accuracy	±0.02mm
Table size	3000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 2000KG
Floor space	450015001700mm
