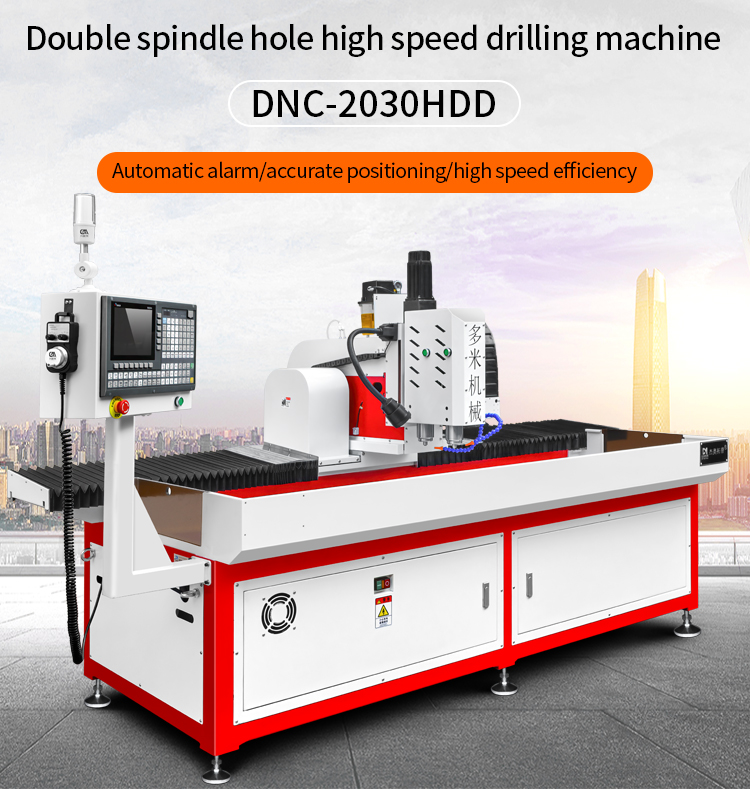

DNC-2030HDD High Speed Precision CNC Aluminium Steel Copper Metal Plate Pipe

Profile Small Hole Double Spindle Drilling Machine

DUOMI CNC’s Small Hole Double Spindle Drilling Machine enables simultaneous precision drilling of tiny metal parts, boosting efficiency and ensuring consistent high-quality results.

Machine type	DNC-2030HDD
XYZ three-axis machining stroke0	X2000mm Y300mm Z200mm
Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	Collet reducer sleeve
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~4.0mm
Tool magazine	Pneumatic press knife change
Repeated positioning accuracy	±0.02mm
Table size	2000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1500KG
Floor space	350015001700mm
