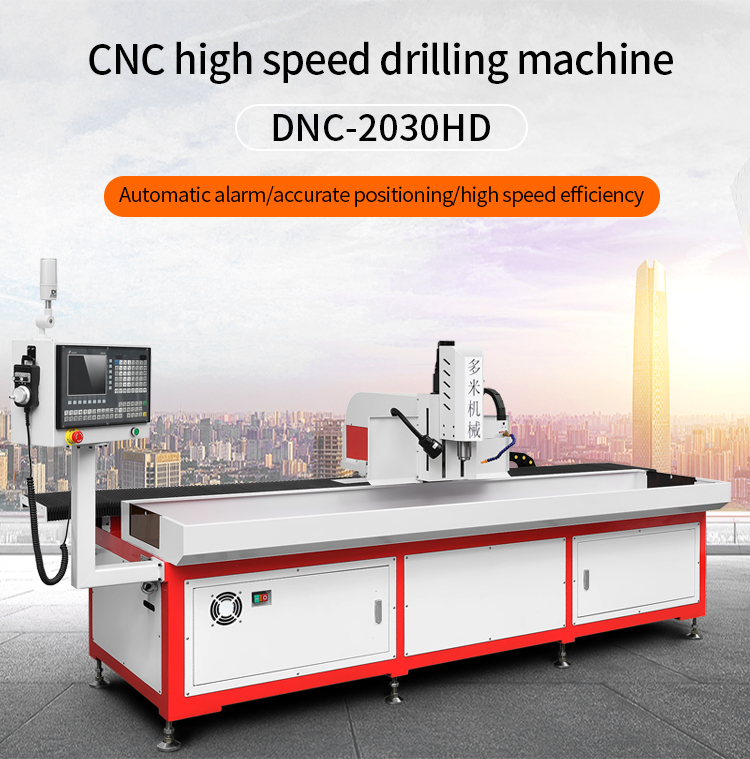

DNC-2030HD Precision Small Micro Hole 0.15mm-4.0mm Drill Press CNC Aluminium

Steel Copper Metal Sheet Vertical Drilling Machine

DUOMI CNC’s Vertical Drilling Machine provides accurate, reliable vertical drilling for metal components, boosting production efficiency and ensuring consistent, high-quality results.

Product Paramenters

Machine type	DNC-2030HD
XYZ three-axis machining stroke0	X2000mm Y300mm Z120mm
Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	Collet reducer sleeve
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~4.0mm
Tool magazine	Pneumatic press knife change
Repeated positioning accuracy	±0.02mm
Table size	2000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1500KG
Floor space	35009001700mm
