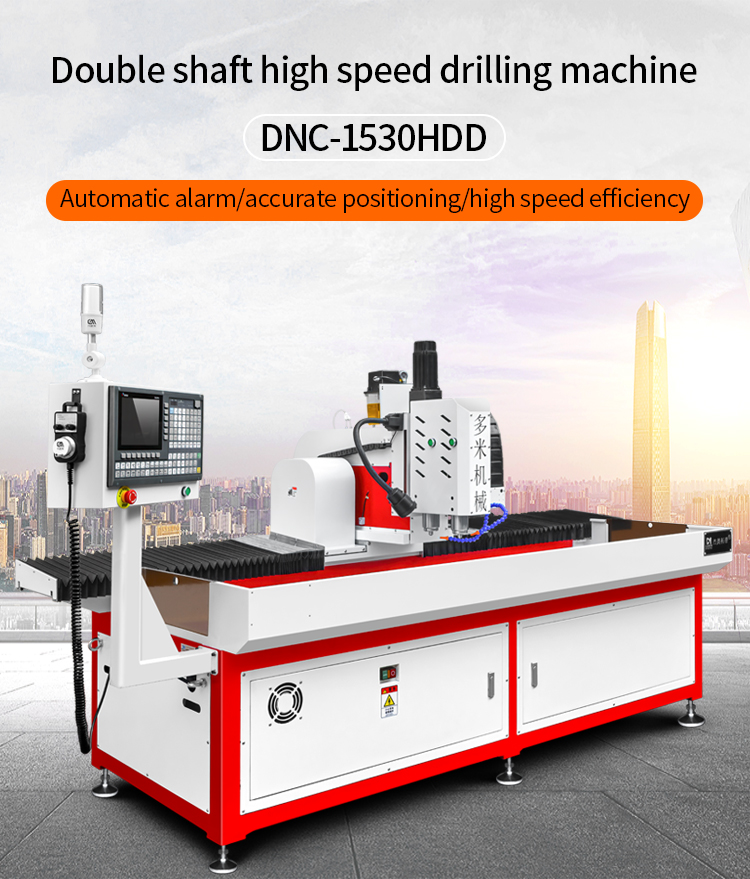

DNC-1530HDD High Speed Precision CNC Aluminium Steel Copper Metal Plate Pipe

Profile Small Hole Double Spindle Drilling Machine

DUOMI CNC’s Small Hole Drilling Machine provides precise, efficient drilling for tiny metal components, ensuring consistent quality and high productivity in industrial applications.

Machine type	DNC-1530HDD
XYZ three-axis machining stroke0	X1500mm Y300mm Z200mm
Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	Collet reducer sleeve
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~4.0mm
Tool magazine	Pneumatic press knife change
Repeated positioning accuracy	±0.02mm
Table size	1500*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1000KG
Floor space	250015001700mm
