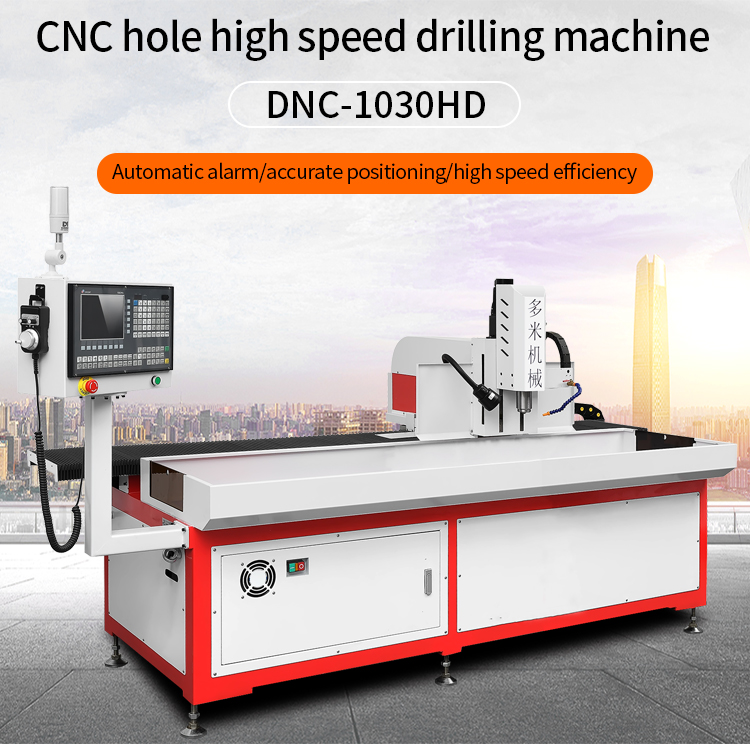

DNC-1030HD Precision Small Micro Hole 0.15mm-4.0mm Drill Press CNC Aluminium

Steel Copper Metal Sheet Vertical Drilling Machine

DUOMI CNC’s CNC Vertical Drilling Machine delivers precise vertical drilling for metal parts, enhancing production efficiency and ensuring consistent, high-quality results.

Product Paramenters

Machine type	DNC-1030HD
XYZ three-axis machining stroke0	X1000mm Y300mm Z120mm
Spindle speed	3000~60000rpm(Can be selected according to demand)
Spindle taper hole	Collet reducer sleeve
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~4.0mm
Tool magazine	Pneumatic press knife change
Repeated positioning accuracy	±0.02mm
Table size	1000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1000KG
Floor space	25009001700mm
