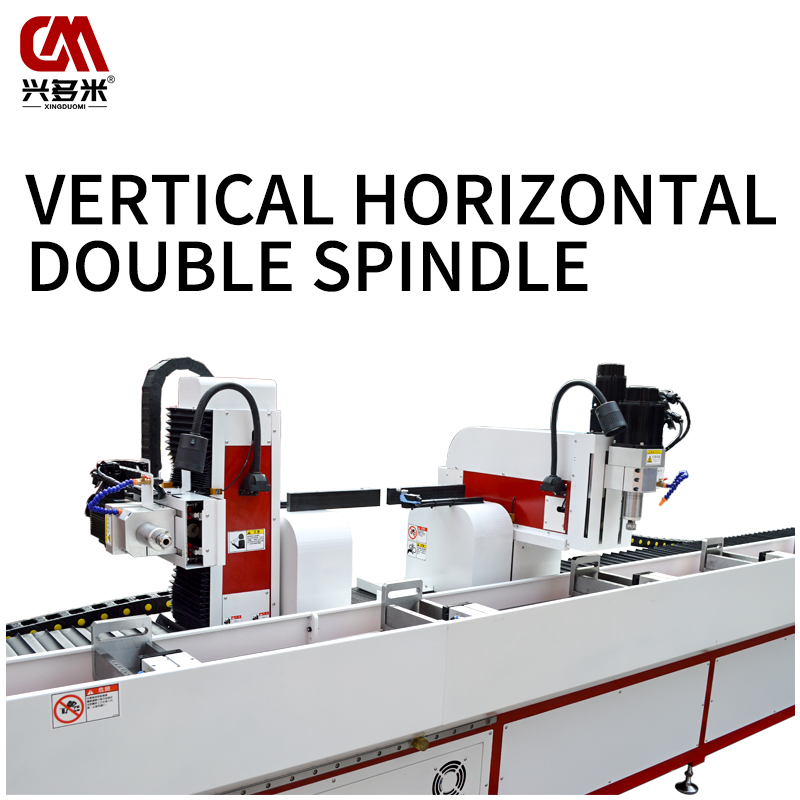

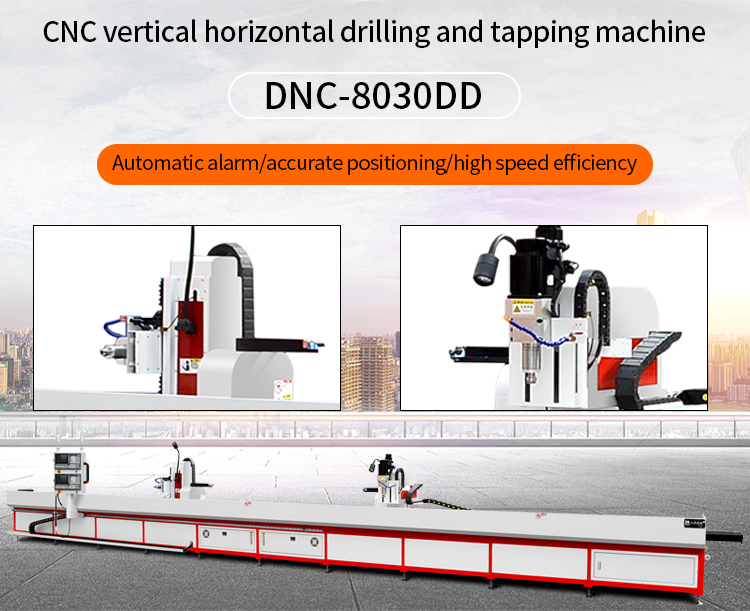

DNC-8030DD Customized Large CNC 8 Meters Drill Press Vertical Horizontal

Integrated 1-20mm Manual Tool Change Drilling Machine

DUOMI CNC’s 8 Meters CNC Drill Press delivers precise long-reach drilling for large metal components, ensuring high efficiency, consistent quality, and reliable industrial performance.

Machine type	DNC-8030DD
XYZ three-axis machining stroke0	X8000mm Y300mm Z200mm
Spindle speed	1000~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	8000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 5000KG
Floor space	1100015002000mm
