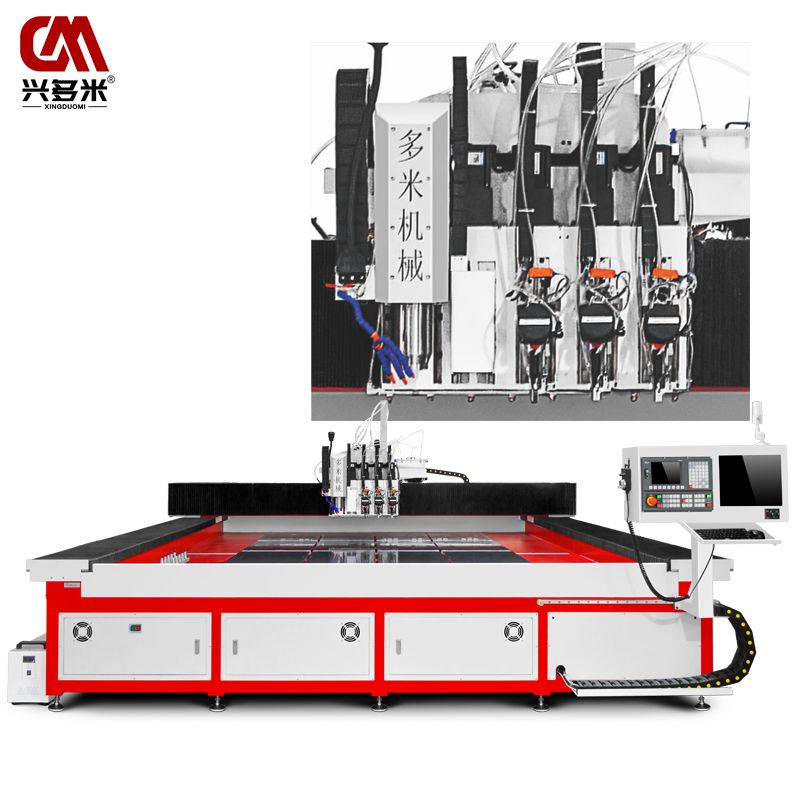

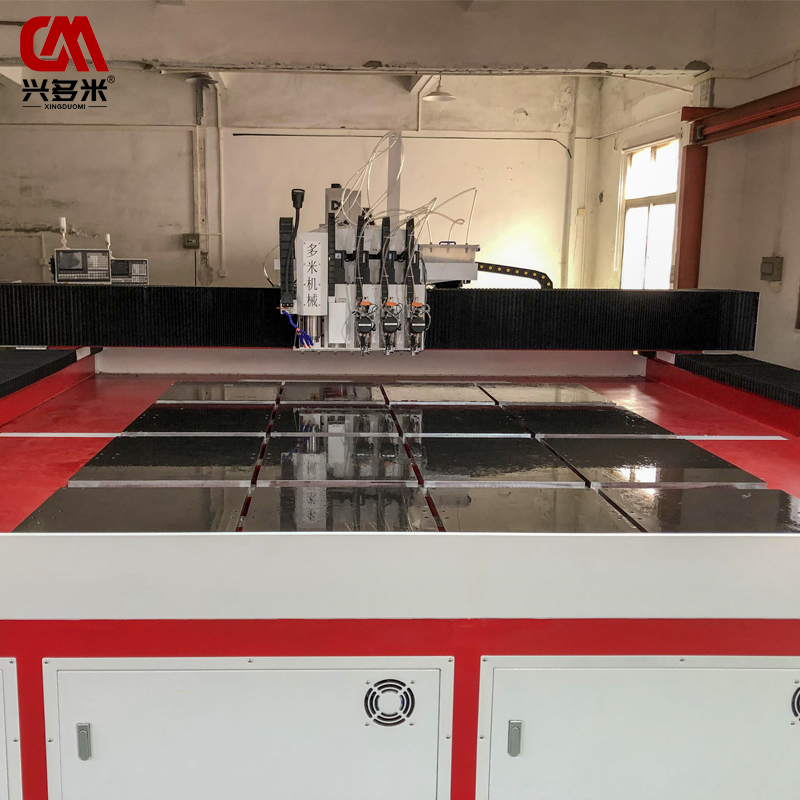

DHC-3028N10 Precision Gantry CNC CCD Visual Positioning Drill Press

Automatic Tool Change Drilling And Tapping Riveting Machines

DUOMI CNC’s Visual Positioning Drill Press ensures ultra-precise drilling using advanced visual alignment, delivering consistent quality and high efficiency for metal fabrication.

Machine type	DHC-3028N10
XYZ three-axis machining stroke0	X2800mm Y3000mm Z200mm
Spindle speed	1000~24000rpm(Can be selected according to demand)
Spindle taper hole	ISO25
Spindle power	2.2KW(Optional)
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm

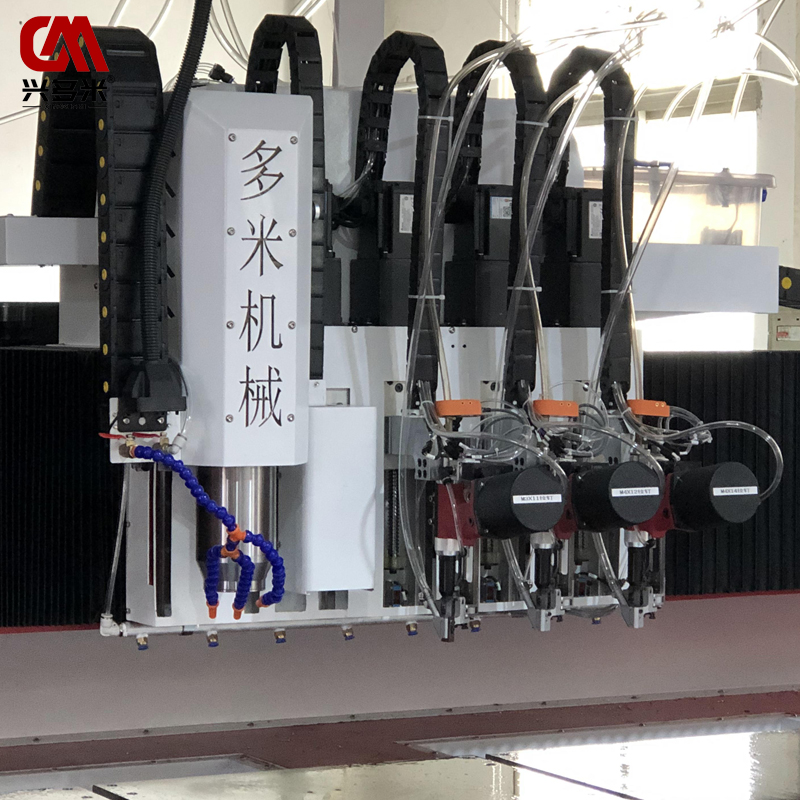

Other functions	CCD automatically finds the hole position
Other functions	Automatic nail feed riveting processing

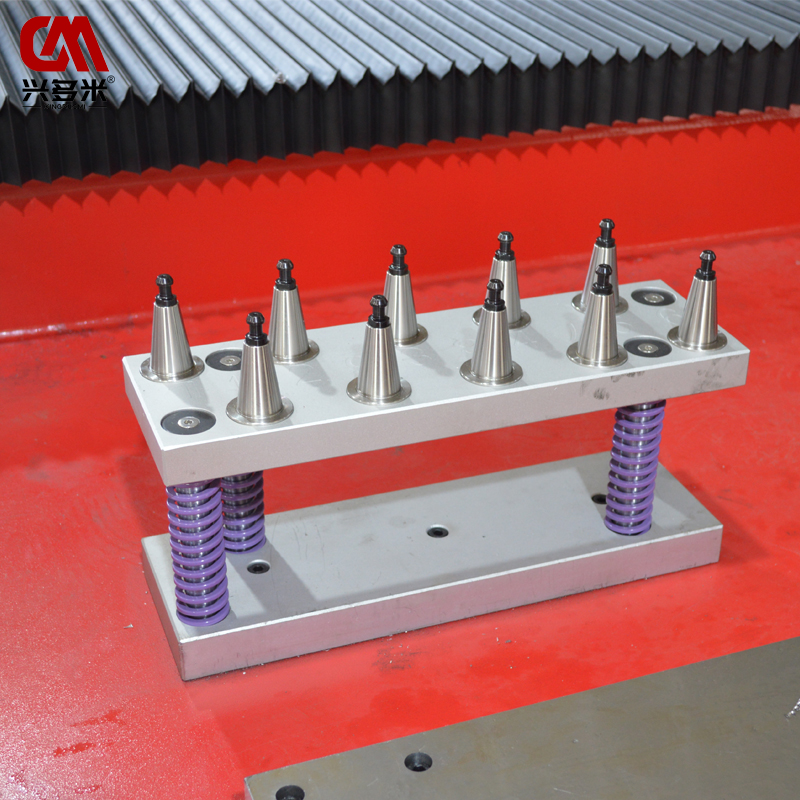

Tool magazine	Automatic tool changing (10 knives)
Repeated positioning accuracy	±0.02mm

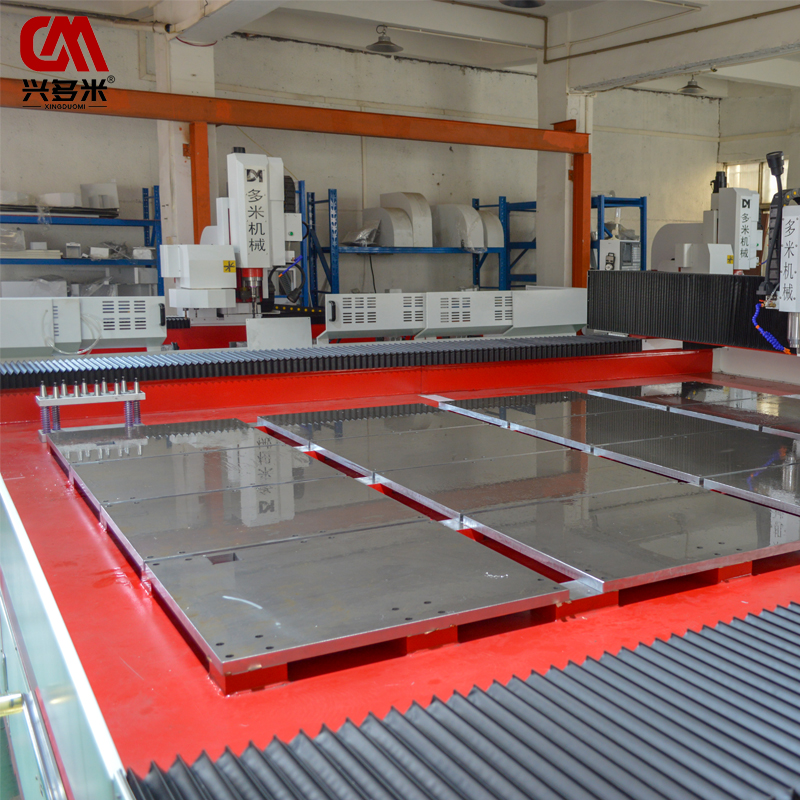

Table form	T-slot table/Slide table (optional on demand)
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 380V/50HZ
Machine weight	Approx. 5000KG
Floor space	500048002300mm
