DNC-2015DDT CNC Gantry Drilling Copper Steel Aluminum Drill Press Manual Tool Change Drilling 1-20mm Tapping M2-M14mm Machine

DUOMI CNC Steel Drilling and Tapping Machine: Heavy-duty, high-speed precision for thick steel plates & structural parts – fast drilling, rigid tapping and optional milling in one robust setup.

Product Paramenters

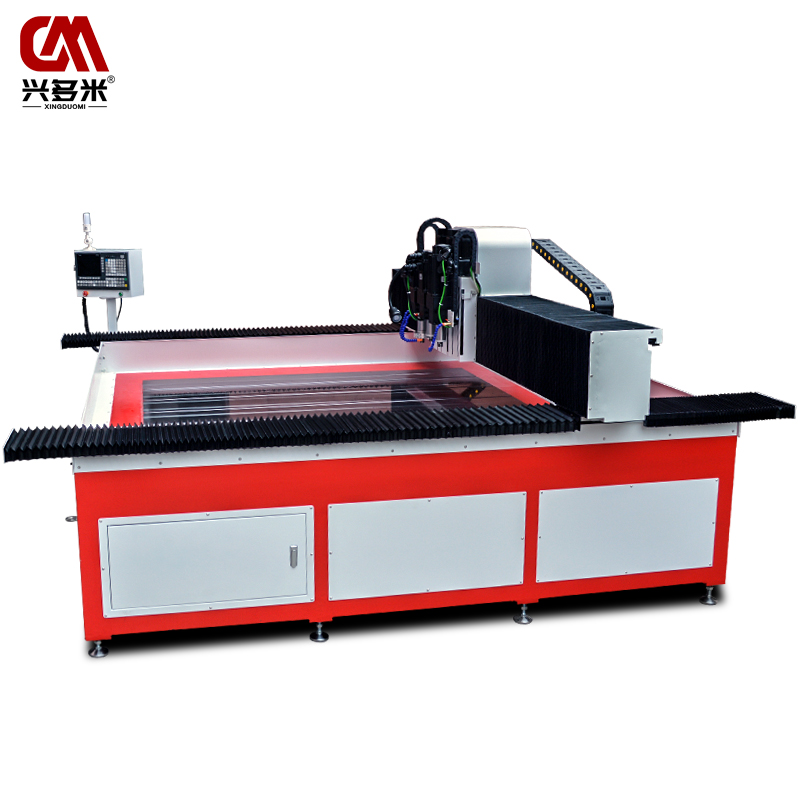

DNC-2015DDT Gantry.jpg

Machine type	DNC-2015DDT
XYZ three-axis machining stroke0	X2000mm Y1500mm Z200mm
Spindle speed	0~6000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	5.5-7.5KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Automatic tool change (10 knives)
Repeated positioning accuracy	±0.02mm

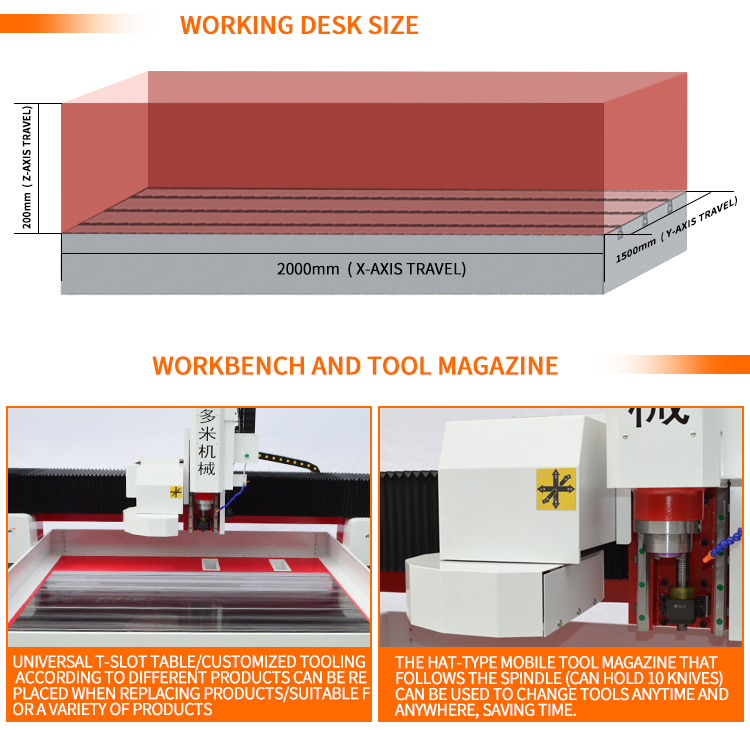

Table size	2000*1500mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 380V/50HZ
Machine weight	Approx. 4000KG
Floor space	400025002000mm
