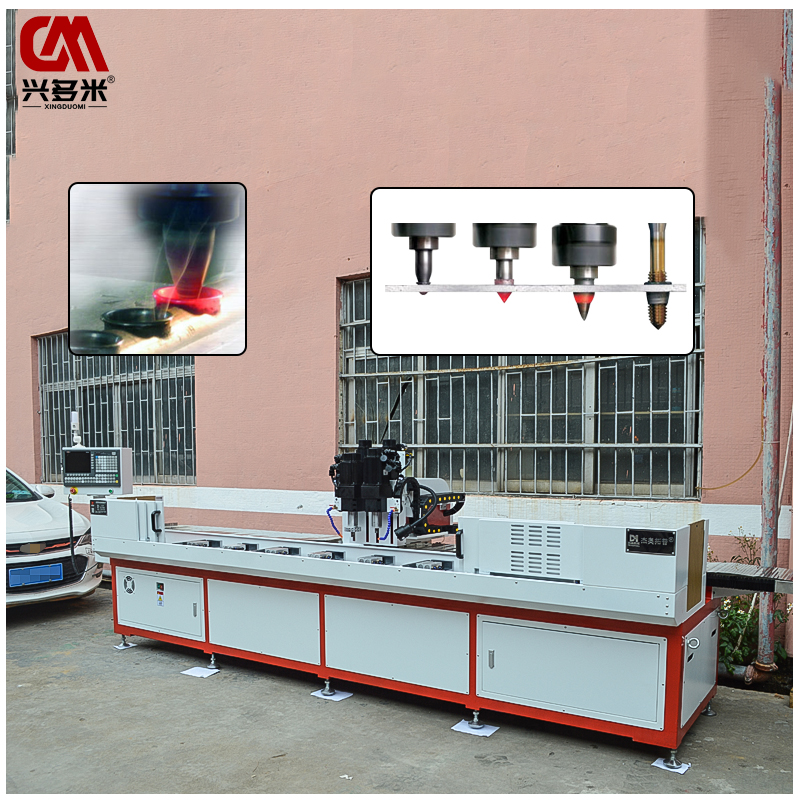

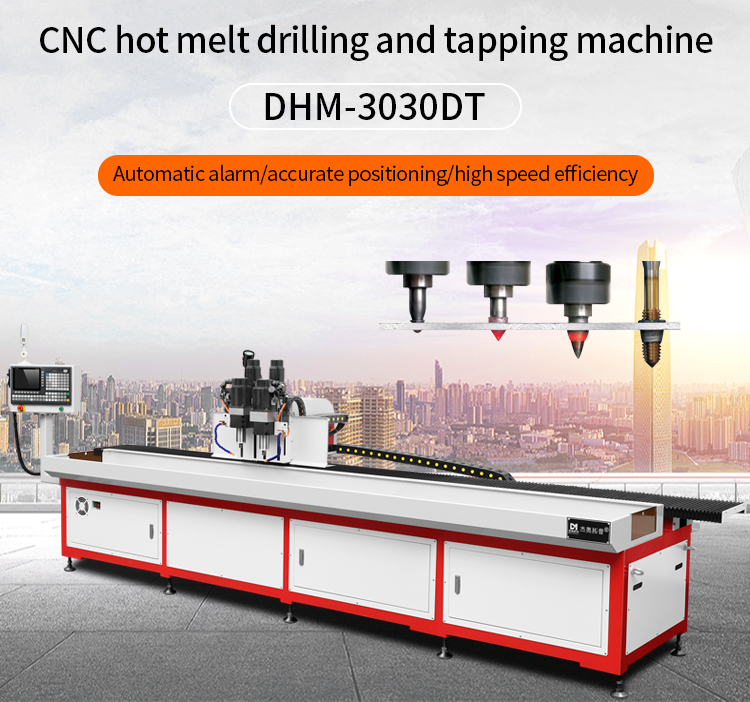

DHM-3030DT Flow Drill Machine Automatic Machines Friction Drill Bit M5 M6 M10 Flowdrilling Aluminum Drilling Tapping CNC Press

DUOMI CNC Flow Drill Machine: Thermal flowdrill technology creates strong bushings in thin metal for reliable tapping. Replaces nut welding – fast, clean, cost-effective.

Machine type	DHM-3030DT
XYZ three-axis machining stroke0	X3000mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~12mm
Tapping diameter range	M2~M12
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm

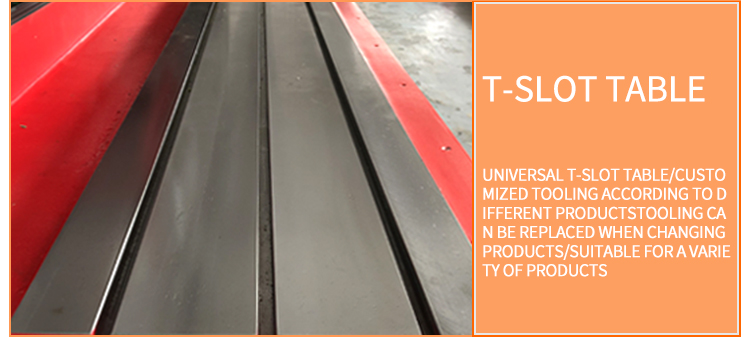

Table size	3000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 2000KG
Floor space	450015001700mm
