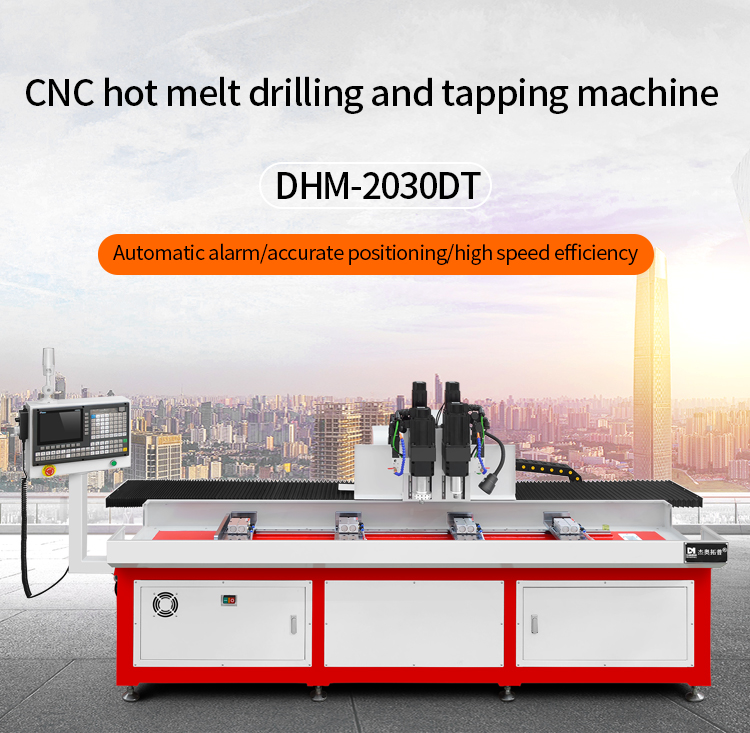

DHM-2030DT Flow Drill Machine Friction Drill Bit Thin Wall Metal Square Round Tube CNC Machine Metal Automatic Drilling And Tapping Machine

DUOMI CNC Drilling and Tapping Machine: High-speed precision CNC center for drilling, flow drilling & tapping in one setup. Perfect for automotive parts and sheet metal fabrication.

Machine type	DHM-2030DT
XYZ three-axis machining stroke0	X2000mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	2000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1600KG
Floor space	350015001700mm
