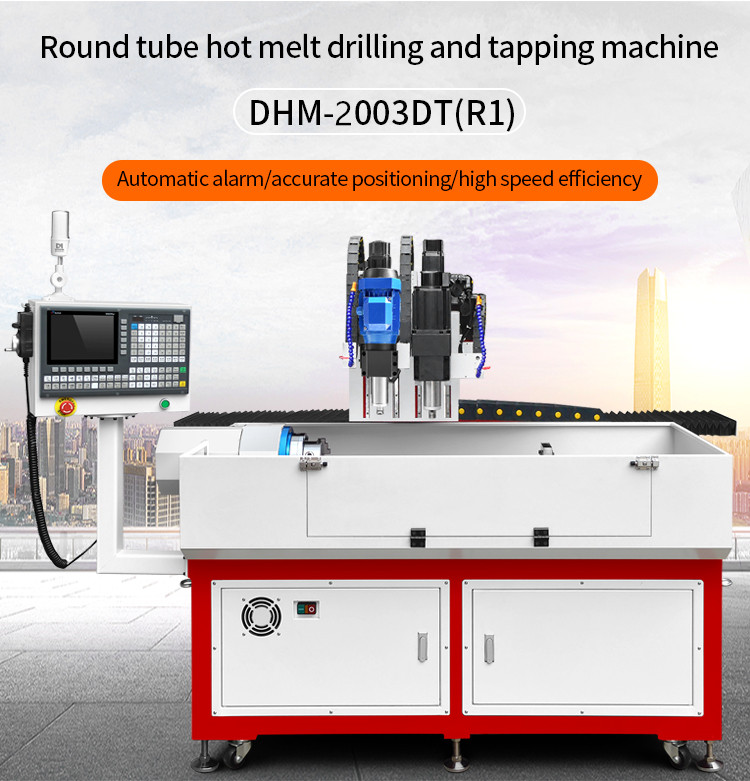

DHM-2003DT (R1) Flow Drill Machine Automatic Drilling Machines Flow Drills Friction Drill Steel Pipe Drilling Tapping CNC Press

DUOMI CNC Automatic Drilling Machines: High-speed, fully automated precision drilling for metal parts – boost throughput and accuracy in fabrication shops.

Machine type	DHM-2003DT(R1)
XZA three-axis machining stroke0	X1800mm Z200mm A360°
Spindle speed	100~6000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer diameter range	1~20mm
Clamping diameter of rotating shaft	10~200mm（Selection on demand）
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1600KG
Floor space	350015001700mm
