DHM-1030DT Flow Drill Machine Friction Bit M5 M10 Flowdrilling Drilling Tapping 3 Axis CNC Press

Drilling diameter range:1~20mm

Tapping diameter range:M2~M14

Chamfer range:1~20mm

Repeated positioning accuracy:±0.02mm

/static/upload/image/20231213/1702466573198303.jpg
/static/upload/image/20231121/1700556766950777.jpg
/static/upload/image/20231121/1700556770673701.jpg
/static/upload/image/20231121/1700556773951205.jpg
/static/upload/image/20231213/1702466573198303.jpg
/static/upload/image/20231121/1700556766950777.jpg
/static/upload/image/20231121/1700556770673701.jpg
/static/upload/image/20231121/1700556773951205.jpg
  • Technical Data

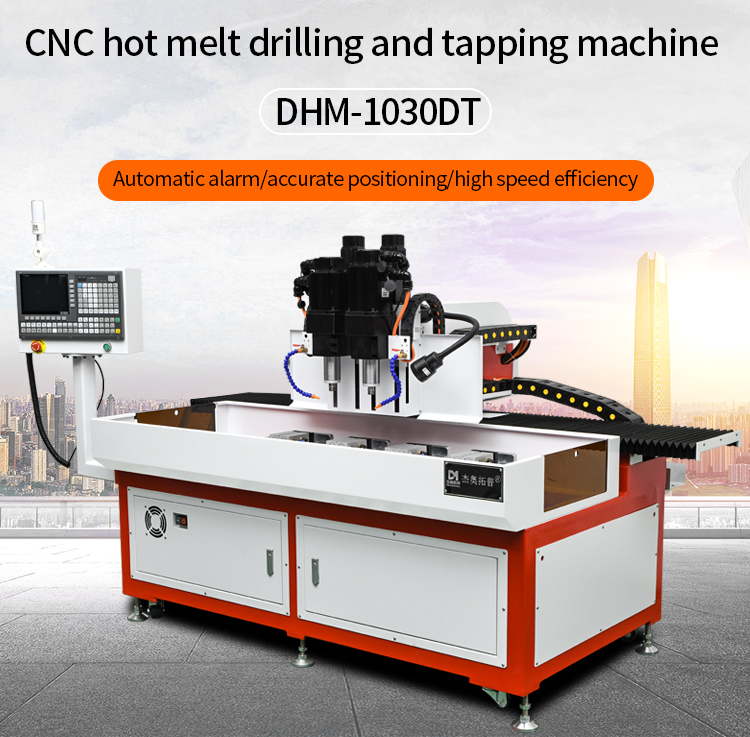

DHM-1030DT Precision Friction Flow Drill machine 2 Spindle CNC Aluminum Steel Metal

Plate Automatic Drilling And Tapping Machine



DHM-1030DT Flow Drill Machine Friction Drill Tap Bit Tungsten M5 M6 M10 Flowdrilling Aluminum Drilling Tapping 3 Axis CNC Press


Machine type

DHM-1030DT

XYZ three-axis machining stroke0

X1000mm Y300mm Z200mm

Spindle speed

100~6000rpm(Can be selected according to demand)

Spindle taper hole

ER20

Spindle power

0.55~3.0KW

X axis moving speed

30m/min~60m/min

Y axis moving speed

25m/min

Z axis moving speed

25m/min

Borehole diameter range

1~12mm

Tapping diameter range

M2~M12

Chamfer range

1~20mm

Tool magazine

Manual tool change

Repeated positioning accuracy

±0.02mm

Table size

1000*280mm

Programming mode

CAD file import/computer programming/manual programming

System program storage capacity

About 10,000

System external signal control

support

Operating voltage

AC 220V/50HZ

Machine weight

Approx. 1000KG

Floor space

2500*1500*1700mm



http://www.duomicnc.com/

DUOMI CNC Flow Drill Machine: Thermal flow drilling + tapping solution. Replaces manual nut welding with strong, clean threads in thin sheets. Ideal for automotive & HVAC.
