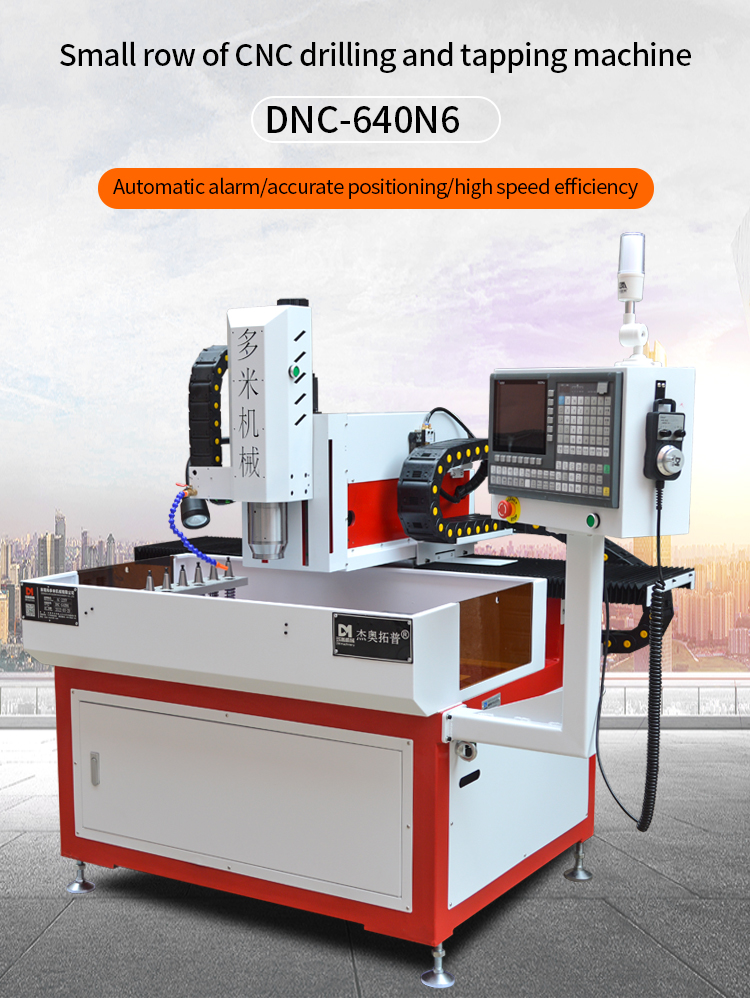

DNC-640N6 Precision Aluminum Steel High Speed Small Micro Hole Automatic Tool Change CNC Drilling 1-12mm Tapping M2-M8 Machine

DUOMI CNC’s Automatic Tool Change CNC Drilling and Tapping Machine delivers fast tool swaps, precise metal processing, and higher efficiency for modern manufacturing.

Machine type	DNC-640N6
XYZ three-axis machining stroke0	X600mm Y400mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ISO25
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~12mm
Tapping diameter range	M2~M8
Chamfer diameter range	1~12mm

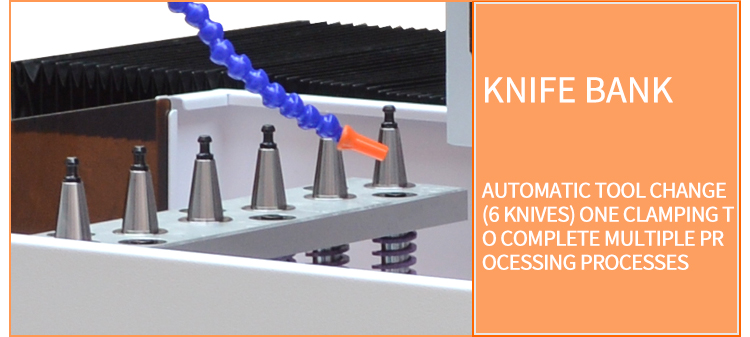

Tool magazine	Automatic tool change (6 knives)
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 600KG
Floor space	1200mm1000mm1700mm
