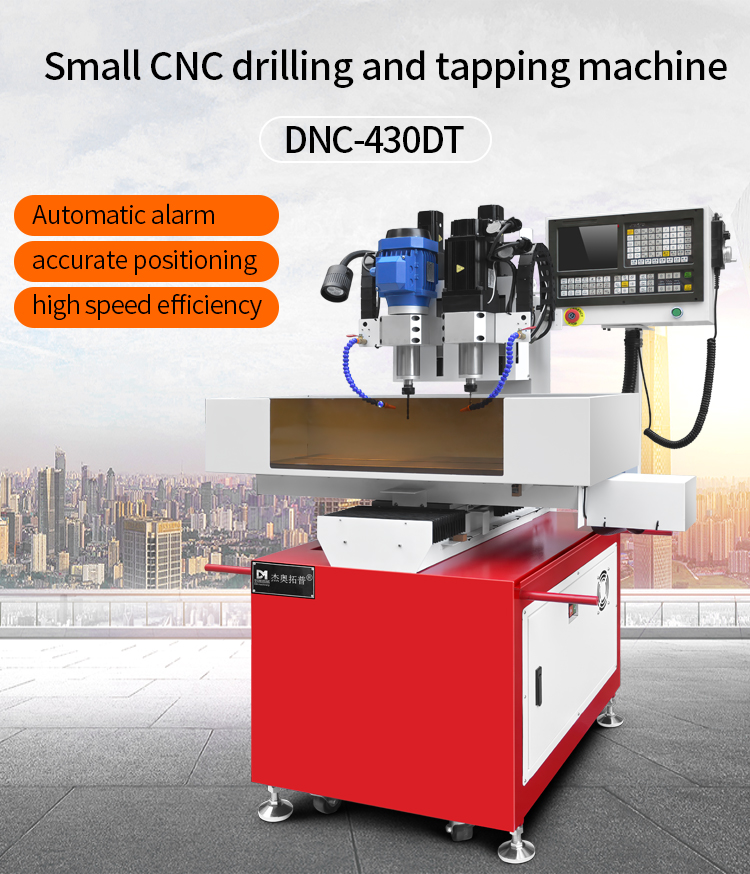

DNC-430DT Automatic Precision 3-Axis CNC Aluminium Steel Copper Metal Sheet Drill Press 2-Spindles Drilling and Tapping Machine

DUOMI CNC’s 2-Spindles Drilling and Tapping Machine boosts productivity with synchronized dual-spindle drilling, precise threading, and reliable performance for metal fabrication.

Product Paramenters

Machine type	DNC-430DT
XYZ three-axis machining stroke0	X400mm Y300mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	25m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~14mm
Tapping diameter range	M2~M14
Chamfer diameter range	1~14mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	400*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 550KG
Floor space	100010001700mm
