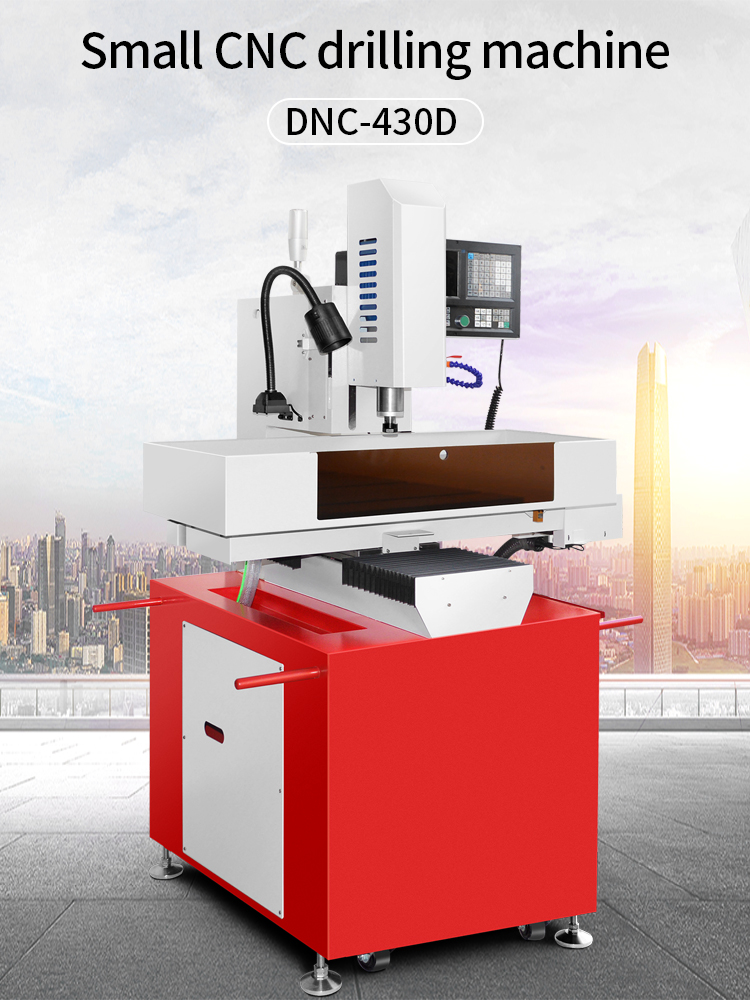

DNC-430D Precision Automatic 3 Axis CNC Aluminium Steel Metal Sheet Drill Press 1-14mm Hole Manual Tool Change Drilling Machine

DUOMI CNC’s 3 Axis CNC Drilling Machine delivers precise, stable drilling for metals and industrial parts, offering faster production and reliable performance for manufacturers.

Product Paramenters

Machine type	DNC-430D

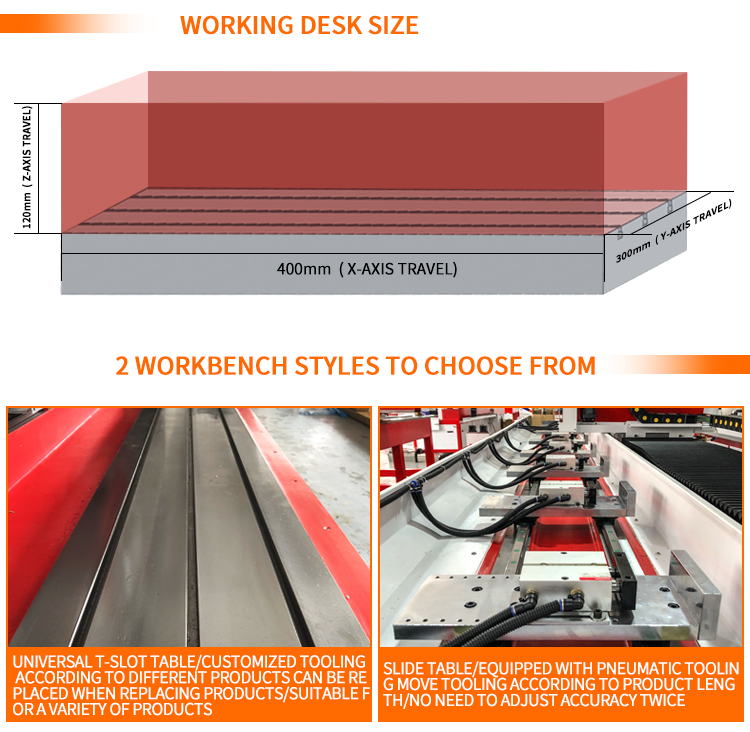

XYZ three-axis machining stroke0	X400mm Y300mm Z120mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~14mm
Chamfer diameter range	1~14mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	400*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 500KG
Floor space	8509001700mm
