DNC-4030DT Precision 3 Axis CNC Aluminium Steel Metal Sheet Drill Press 2 Spindles Machines Drilling Tapping Milling Machine

DUOMI CNC’s Aluminium Drill Press ensures accurate, clean drilling on aluminum parts, boosting production efficiency and delivering consistent, high-quality results for manufacturers.

Product Paramenters

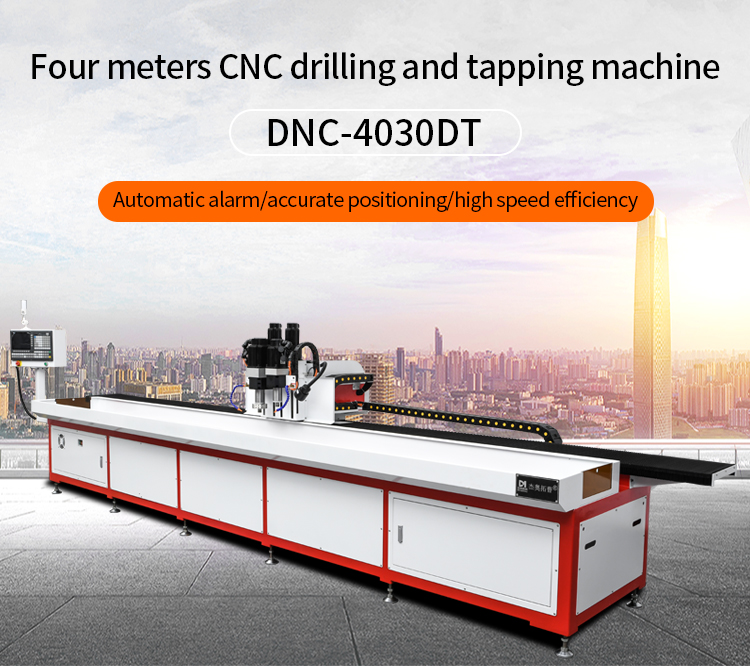

DNC-4030DT Precision 3 Axis CNC Aluminium Drill Press 2 Spindles Machines Drilling Tapping Machine 1121.jpg

Machine type	DNC-4030DT
XYZ three-axis machining stroke0	X4000mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	4000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 2600KG
Floor space	550015001700mm
