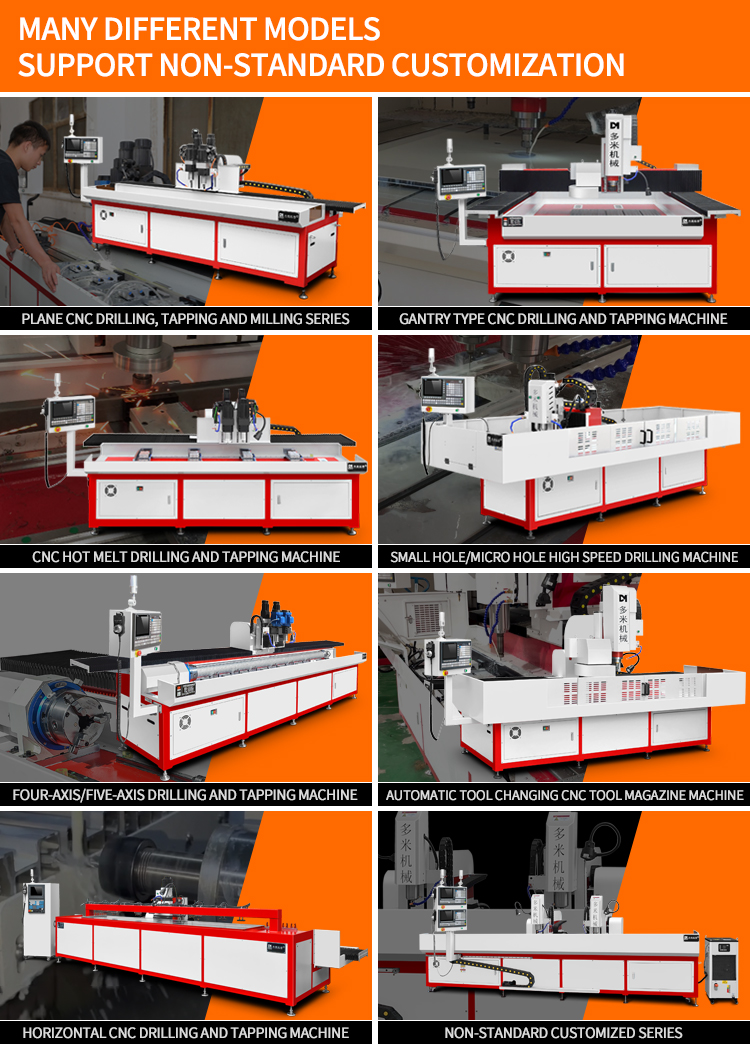

Flow Drill Drilling and Tapping Machine CNC Drilling and Tapping Machine Small Micro Hole CNC Drilling Machine Gantry CNC Drilling and Tapping Machine 4-axis 5-axis Drilling Tapping Machine Customized Drilling and Tapping Machine Visual Positioning Drilling Slotting Machine Automatic Metal Profile Drilling Machine

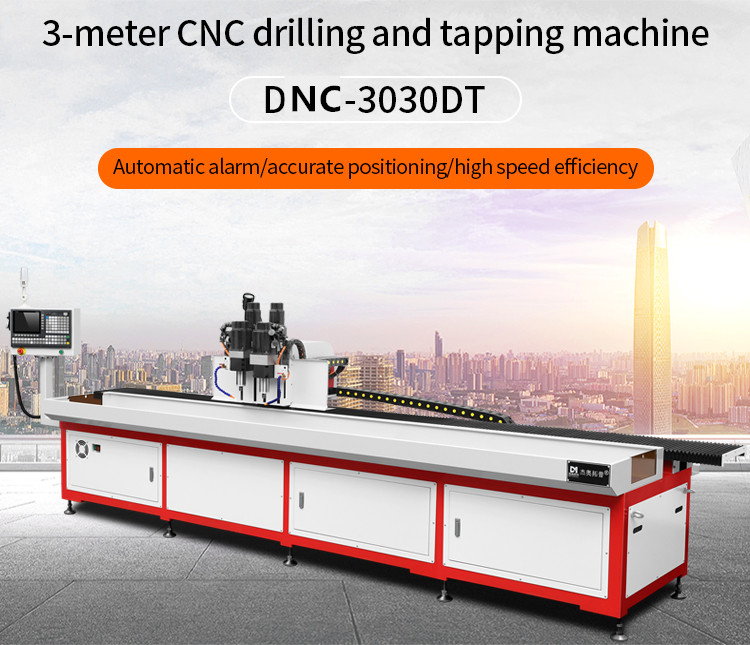

DNC-3030DT Aluminum Castings Drilling Show Profile Metal Drill Press Processing Parts CNC Drilling And Tapping Milling Machine

DUOMI CNC’s Metal Drill Press provides precise, reliable drilling for steel and aluminum parts, enhancing production efficiency and delivering consistent, high-quality results.

Product Paramenters

Machine type	DNC-3030DT
XYZ three-axis machining stroke0	X3000mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	3000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 2100KG
Floor space	450015001700mm
