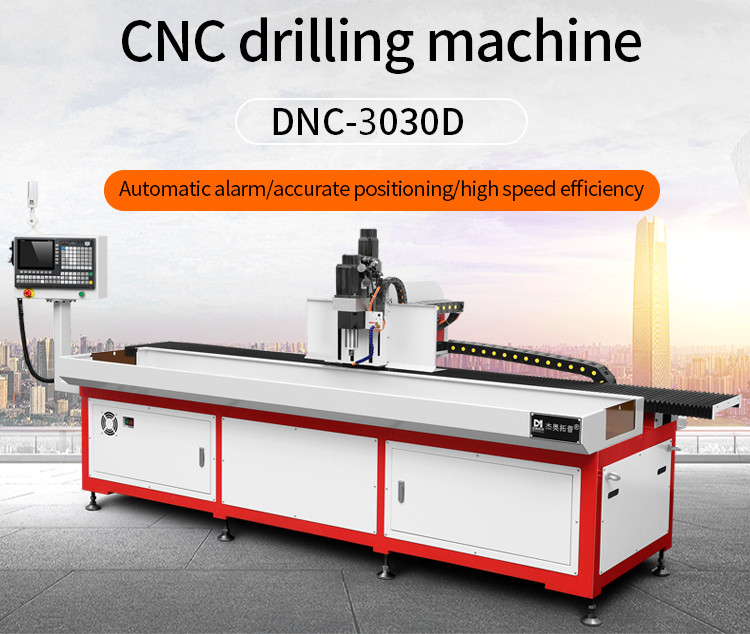

DNC-3030D Precision High Speed Aluminum Steel Metal Plate Auto Milling Drill Press Automatic CNC Drilling And Tapping Machine

DUOMI CNC’s Automatic CNC Drilling and Tapping Machine delivers precise hole making and reliable threading in one setup, improving production speed and accuracy for metal fabrication.

Product Paramenters

Machine type	DNC-3030D
XYZ three-axis machining stroke0	X3000mm Y300mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Chamfer diameter range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	3000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 2000KG
Floor space	420015001700mm
