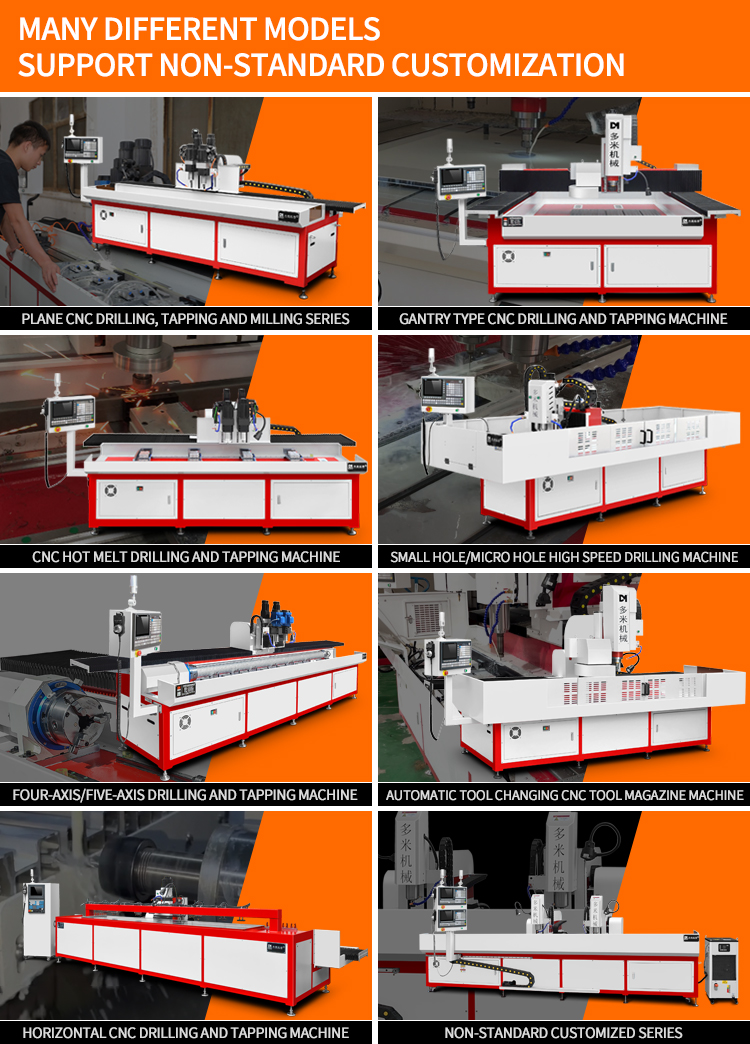

Flow Drill Drilling and Tapping Machine CNC Drilling and Tapping Machine Small Micro Hole CNC Drilling Machine Gantry CNC Drilling and Tapping Machine 4-axis 5-axis Drilling Tapping Machine Customized Drilling and Tapping Machine Visual Positioning Drilling Slotting Machine Automatic Metal Profile Drilling Machine

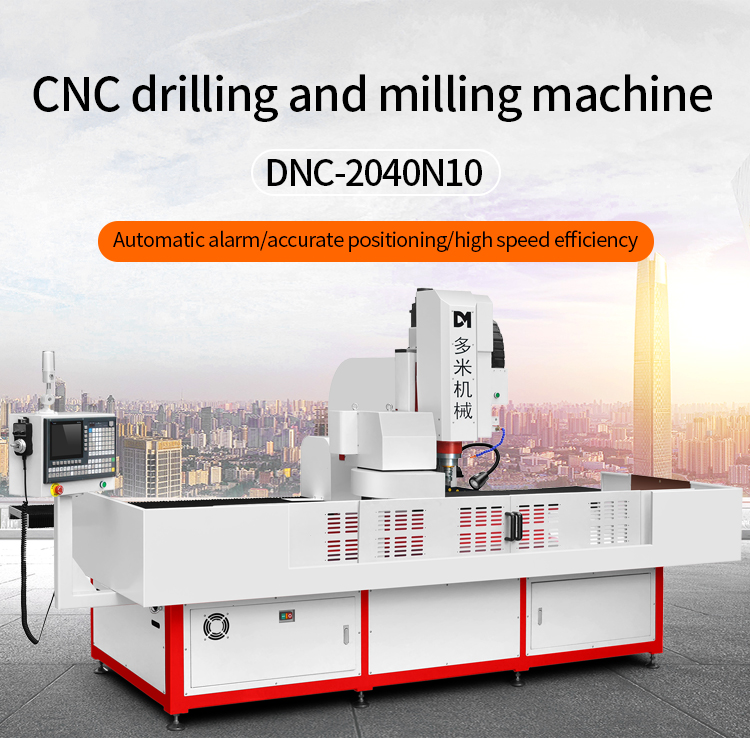

DNC-2040N10 Customized 3 Axis CNC Copper Steel Aluminum Metal Sheet Drilling Tapping Machine with Automatic Tool Change

DUOMI CNC’s Metal Sheet Drilling Tapping Machine provides accurate hole making and stable threading for steel and aluminum sheets, improving production speed and consistency.

Product Paramenters

Machine type	DNC-2040N10

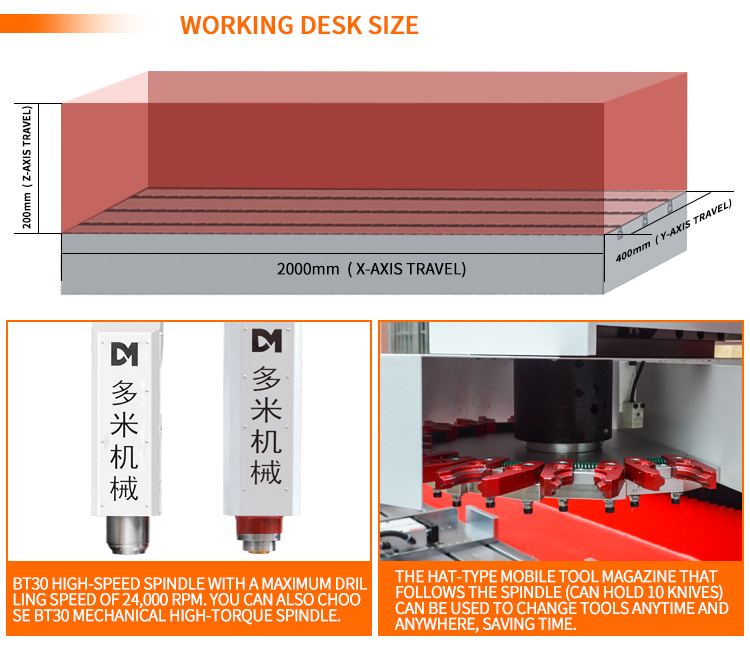

XYZ three-axis machining stroke0	X2000mm Y400mm Z200mm(Itinerary can be customized)
Spindle speed	3000~24000rpm(Can be selected according to demand)
Spindle taper hole	BT30
Spindle power	5.5~7.5KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping range	M2~M16
Chamfer range	1~20mm
Tool magazine	Automatic tool change (10 knives)
Repeated positioning accuracy	±0.02mm
Table size	2000*380mm
T-slot size/number	Top width 13 x bottom width 20 x 3 pieces
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 380V/50HZ
Machine weight	Approx. 2100KG
Floor space	450020002000mm
