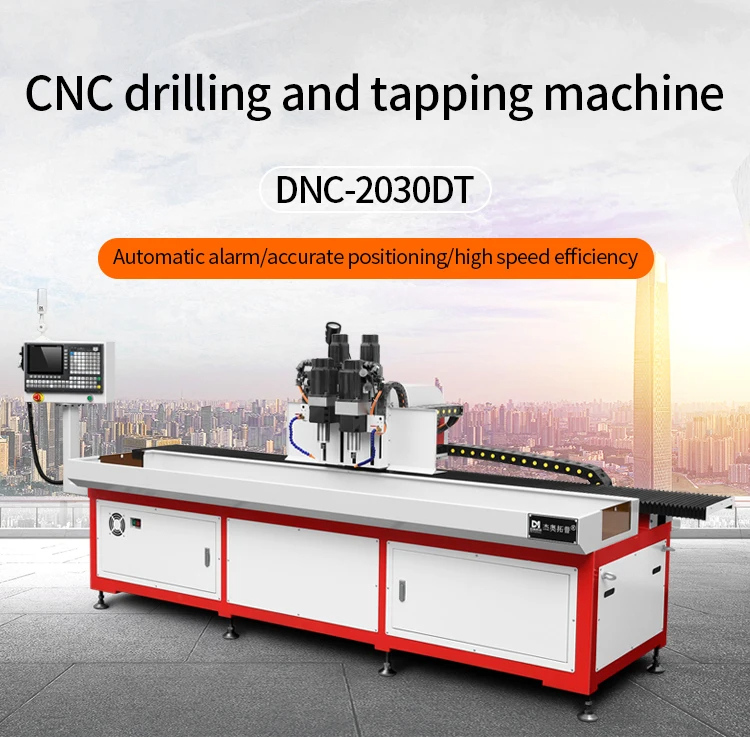

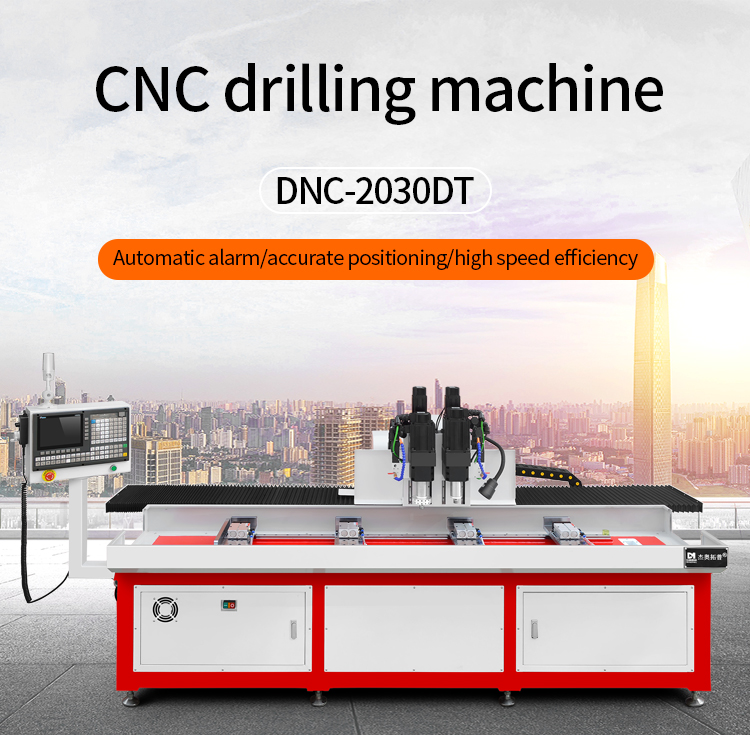

DNC-2030DT Precision Metal Sheet Mill Drill Press For Automotive industry Auto Machines CNC Drilling And Tapping Milling Machine

DUOMI CNC’s Metal Sheet Mill Drill Press delivers precise milling and drilling on steel and aluminum sheets, boosting efficiency and ensuring consistent, high-quality results.

Product Paramenters


Machine type	DNC-2030DT

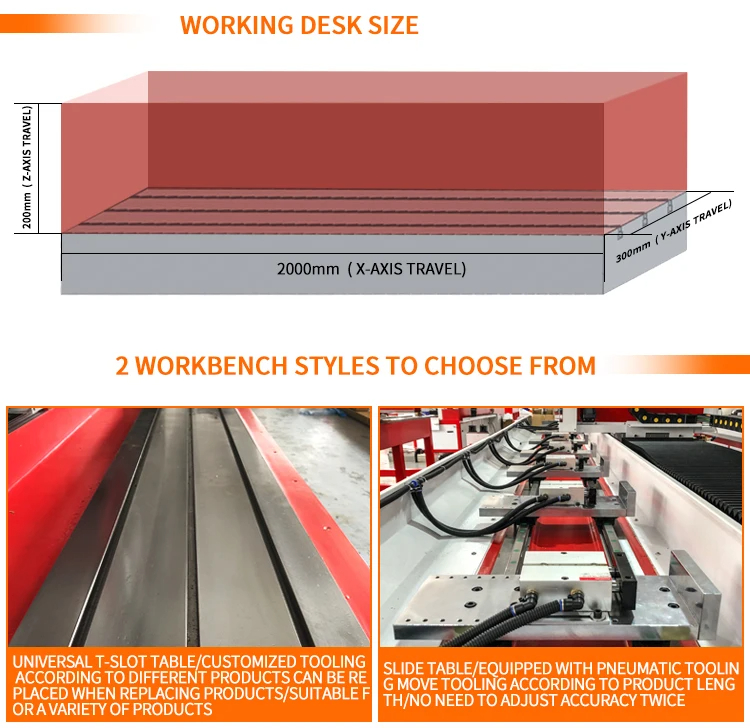

XYZ three-axis machining stroke0	X2000mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	2000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1600KG
Floor space	350015001700mm
