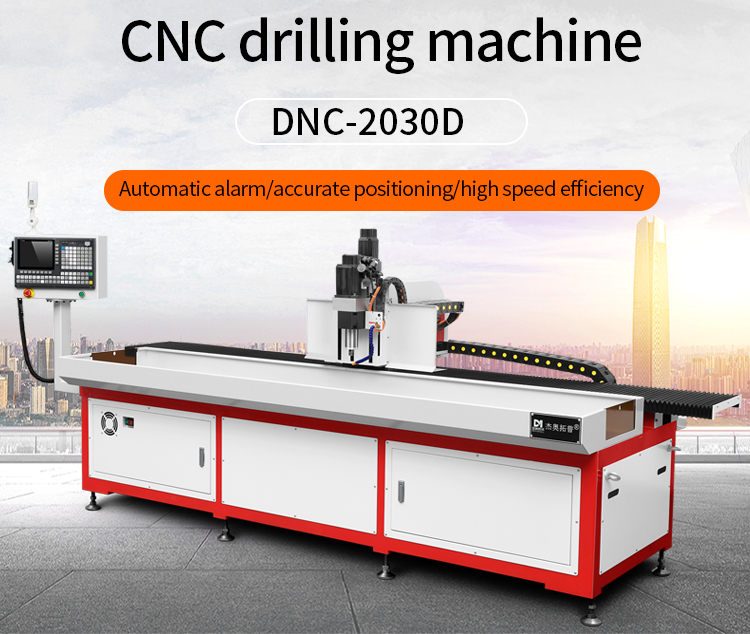

DNC-2030D Precision High Speed Aluminum Steel Metal Plate Auto Milling Drill Press Automatic CNC Drilling And Tapping Machine

DUOMI CNC’s Auto Milling Drill Press offers smooth automated milling and precise drilling for metal parts, helping manufacturers achieve faster, consistent production.

Product Paramenters

Machine type	DNC-2030D
XYZ three-axis machining stroke0	X2000mm Y300mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Chamfer diameter range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	2000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1500KG
Floor space	320015001700mm
