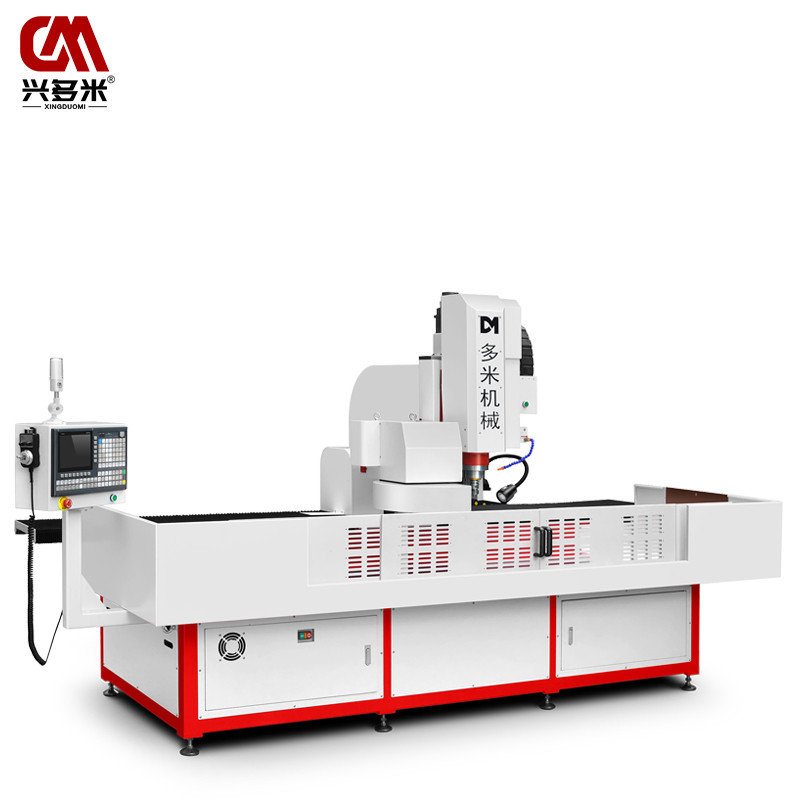

DNC-1540N6 Precision Aluminum Steel High Speed Small Micro Hole Automatic Tool Change CNC Drilling 1-12mm Tapping M2-M8 Machine

DUOMI CNC’s Small Micro Hole CNC Drilling and Tapping Machine delivers ultra-precision micro-hole drilling and stable threading, ideal for electronics and fine metal parts.

Machine type	DNC-1540N10
XYZ three-axis machining stroke0	X1500mm Y400mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)

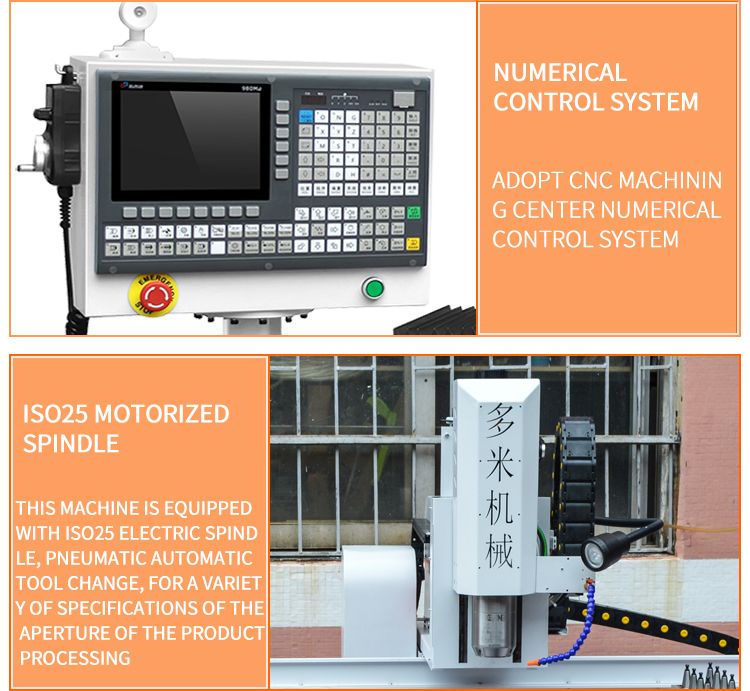

Spindle taper hole	ISO25
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~12mm
Tapping diameter range	M2~M8
Chamfer diameter range	1~12mm

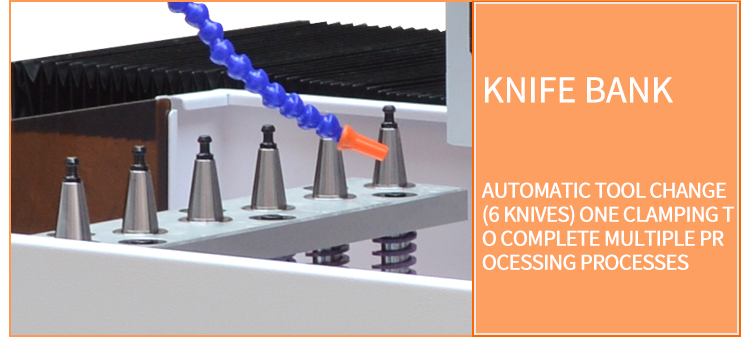

Tool magazine	Automatic tool change (10 knives)
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1500KG
Floor space	2600mm1500mm1700mm
