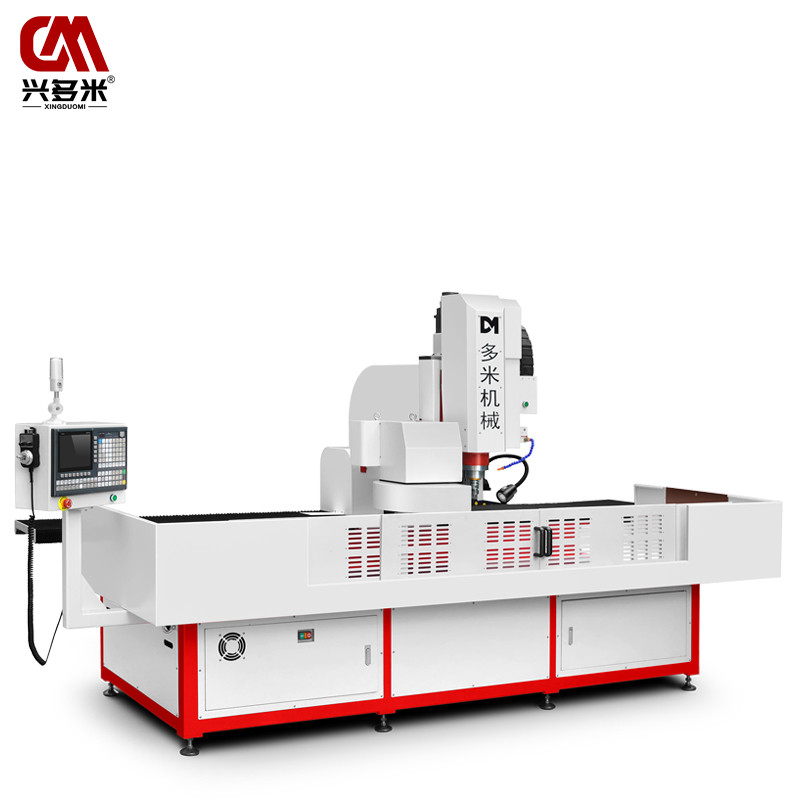

DNC-1040N6 Precision Aluminum Steel High Speed Small Micro Hole Automatic Tool Change CNC Drilling 1-12mm Tapping M2-M8 Machine

Automatic Tool Change CNC Drilling and Tapping Machine

DUOMI CNC’s Automatic Tool Change CNC Drilling and Tapping Machine ensures fast tool switching, precise hole processing, and smoother workflow for high-efficiency production.

Machine type	DNC-1040N10
XYZ three-axis machining stroke0	X1000mm Y400mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)

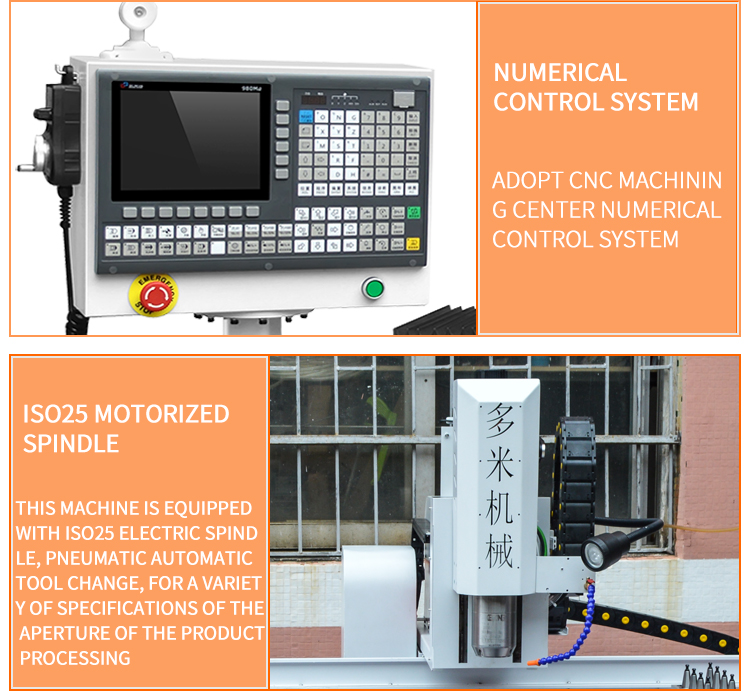

Spindle taper hole	ISO25
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~12mm
Tapping diameter range	M2~M8
Chamfer diameter range	1~12mm

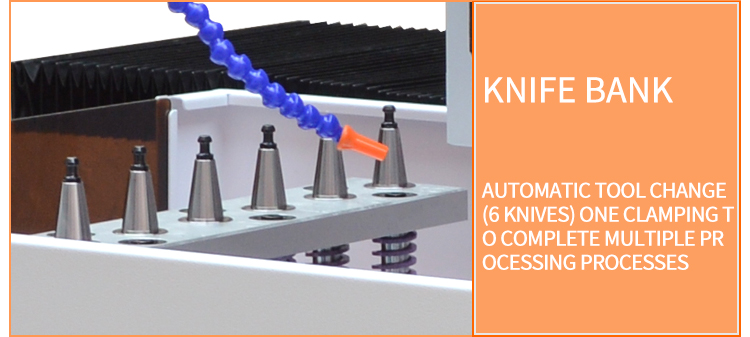

Tool magazine	Automatic tool change (10 knives)
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1200KG
Floor space	2200mm1500mm1700mm
