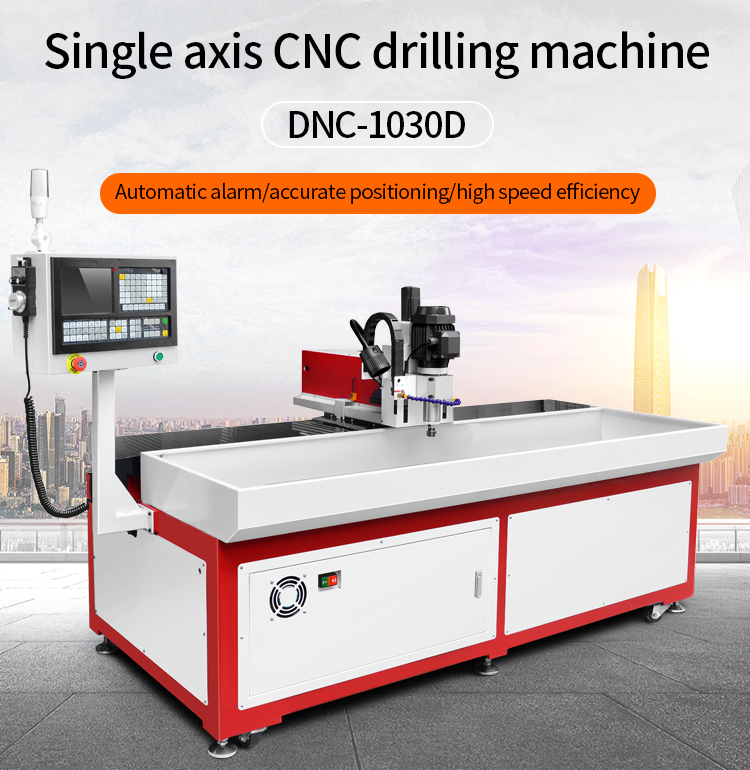

DNC-1030D Precision High Speed Aluminum Steel Metal Plate Auto Milling Drill Press Automatic CNC Drilling And Tapping Machine

DUOMI CNC’s Steel Metal Plate Milling Drill Press delivers precise milling and clean drilling for heavy steel plates, supporting high-strength fabrication with stable, efficient performance.

Product Paramenters

Machine type	DNC-1030D

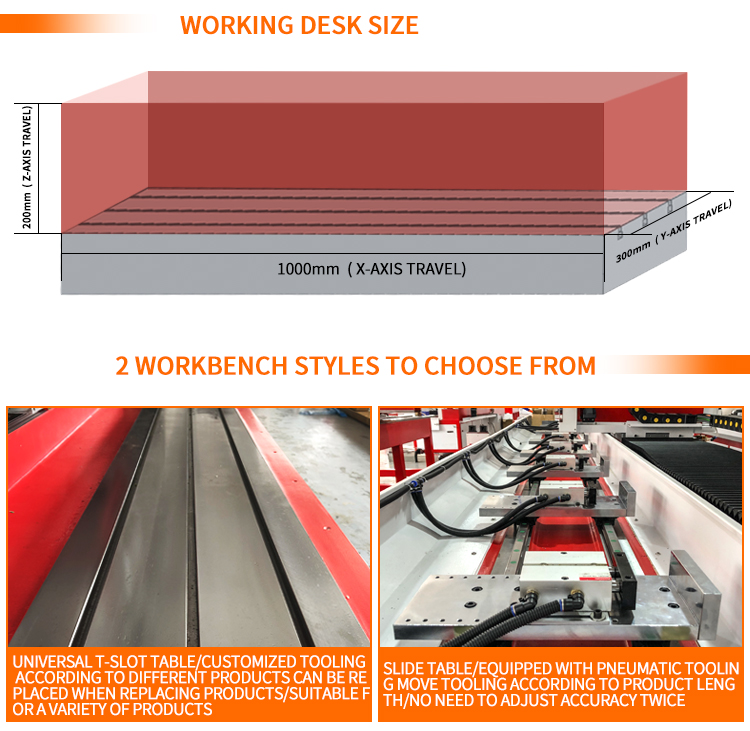

XYZ three-axis machining stroke0	X1000mm Y300mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Chamfer diameter range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	1000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1000KG
Floor space	220015001700mm
