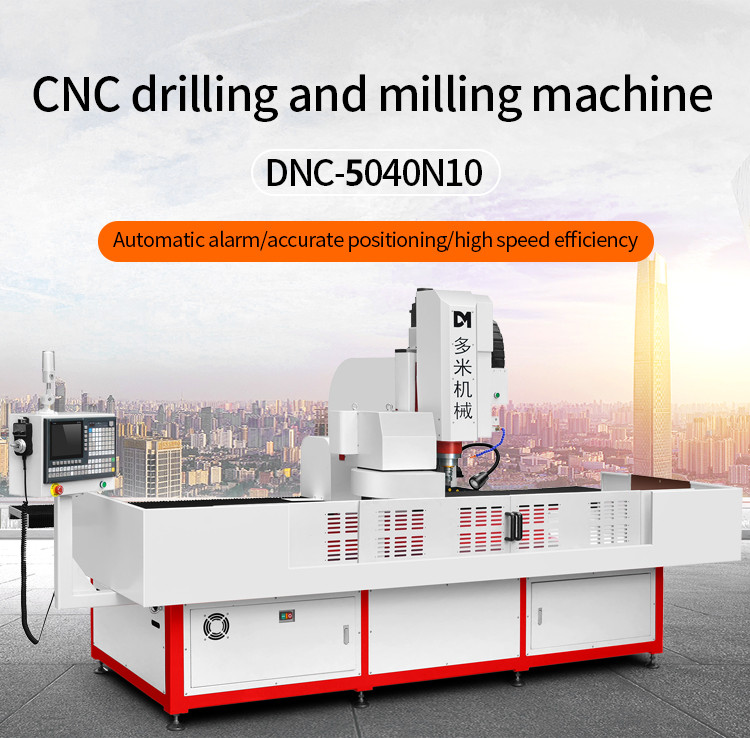

DNC-5040N10 Precision 3-Axis 5 meter Copper Steel Aluminum Metal Plate CNC

Automatic Tool Change 10 Tools Drilling and Tapping Machine

DUOMI CNC’s CNC Drilling and Tapping Machine delivers high-precision drilling and threading, improving efficiency and ensuring consistent, reliable results for metal parts.

Product Paramenters

Machine type	DNC-5040N10
XYZ three-axis machining stroke0	X5000mm Y400mm Z200mm(Itinerary can be customized)
Spindle speed	3000~24000rpm(Can be selected according to demand)
Spindle taper hole	BT30
Spindle power	5.5~7.5KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping range	M2~M16
Chamfer range	1~20mm
Tool magazine	Automatic tool change (10 knives)
Repeated positioning accuracy	±0.02mm
Table size	5000*380mm
T-slot size/number	Top width 13 x bottom width 20 x 3 pieces
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 380V/50HZ
Machine weight	Approx. 3900KG
Floor space	750020002000mm
