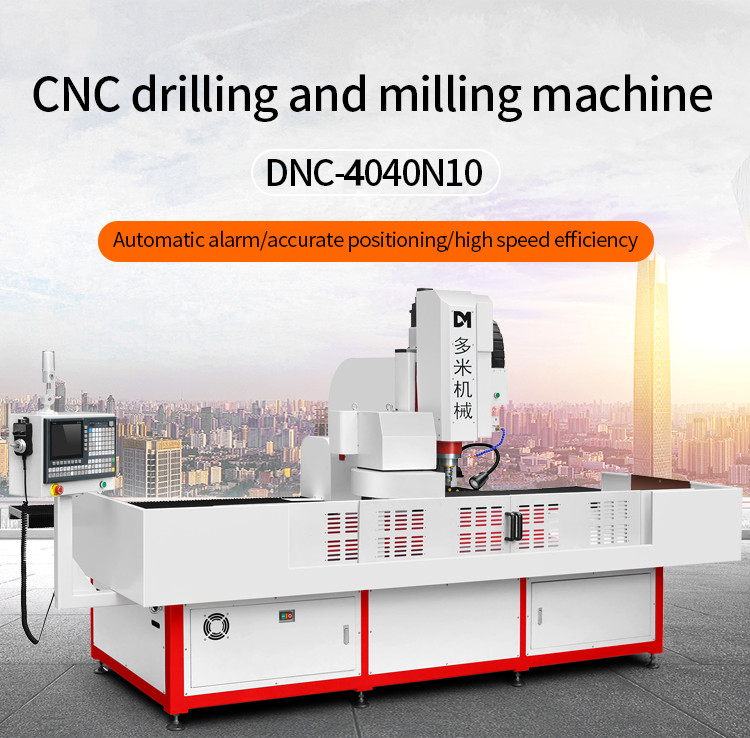

DNC-4040N10 Precision 3-Axis 4 meter Copper Steel Aluminum Metal Plate CNC

Automatic Tool Change 10 Tools Drilling and Tapping Machine

DUOMI CNC’s Aluminum Drilling and Tapping Machine provides precise, efficient hole making and threading for aluminum parts, ensuring consistent quality and faster production.

Product Paramenters

Machine type	DNC-4040N10
XYZ three-axis machining stroke0	X4000mm Y400mm Z200mm(Itinerary can be customized)
Spindle speed	3000~24000rpm(Can be selected according to demand)
Spindle taper hole	BT30
Spindle power	5.5~7.5KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping range	M2~M16
Chamfer range	1~20mm
Tool magazine	Automatic tool change (10 knives)
Repeated positioning accuracy	±0.02mm
Table size	4000*380mm
T-slot size/number	Top width 13 x bottom width 20 x 3 pieces
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 380V/50HZ
Machine weight	Approx. 3300KG
Floor space	650020002000mm
