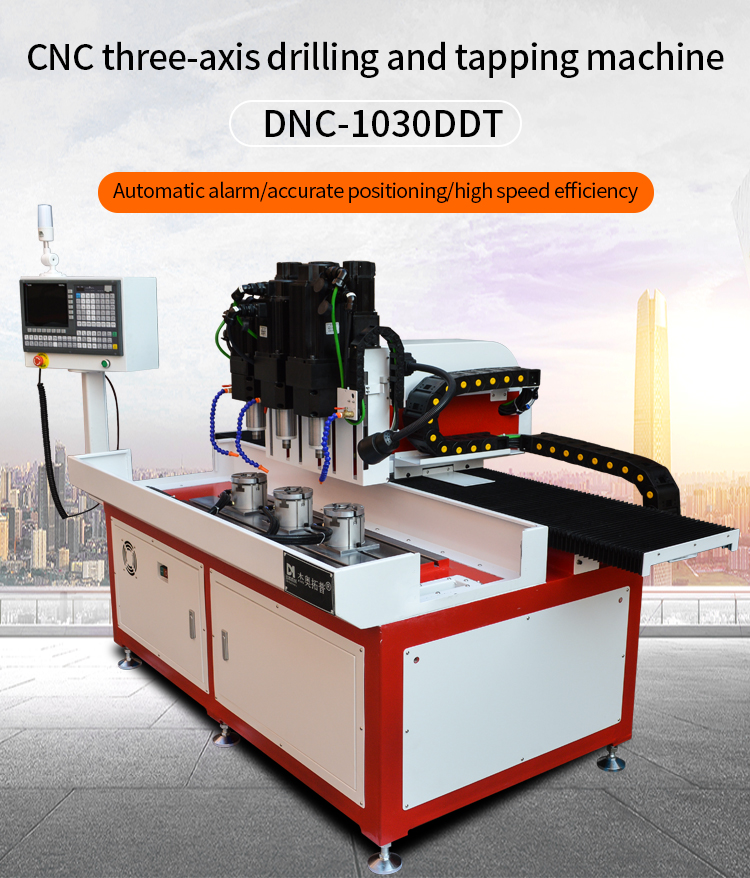

DNC-1030DDT 0.8 meter Precision Metal Steel Aluminium Copper 3 Spindles CNC Drill Press 3 Axis Drilling Tapping Machine

DUOMI CNC’s 3-Spindle CNC Drill Press enables simultaneous multi-hole drilling, boosting production efficiency while ensuring precise, consistent results on metal parts.

Machine type	DNC-1030DDT
XYZ axis machining stroke	X800mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14mm
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	1000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1200KG
Floor space	250015001700mm
