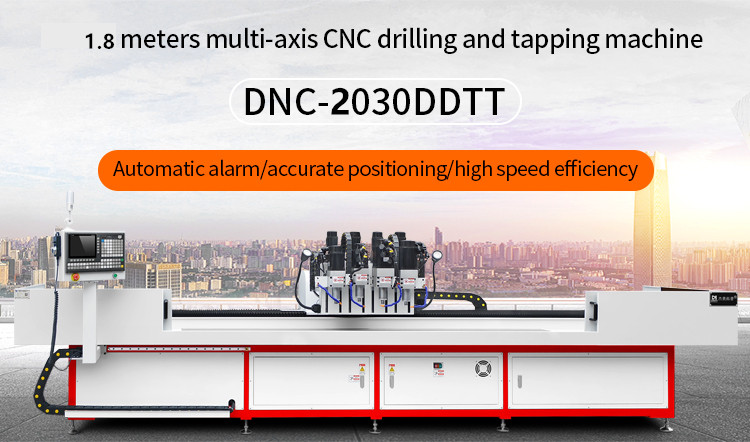

DNC-2030DDTT Precision Metal 3-Axis CNC Aluminium Steel Copper 1.8 meter Drill Press Automatic 4 Spindles Drilling Tapping Machine

Aluminium Steel Copper Drill Press

DUOMI CNC’s Aluminium, Steel, and Copper Drill Press delivers precise, reliable drilling across multiple metals, improving production efficiency and ensuring consistent quality.

Product Paramenters

Machine type	DNC-2030DDTT
XYZ three-axis machining stroke0	X1800mm Y300mm Z200mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 2200KG
Floor space	450015001700mm
