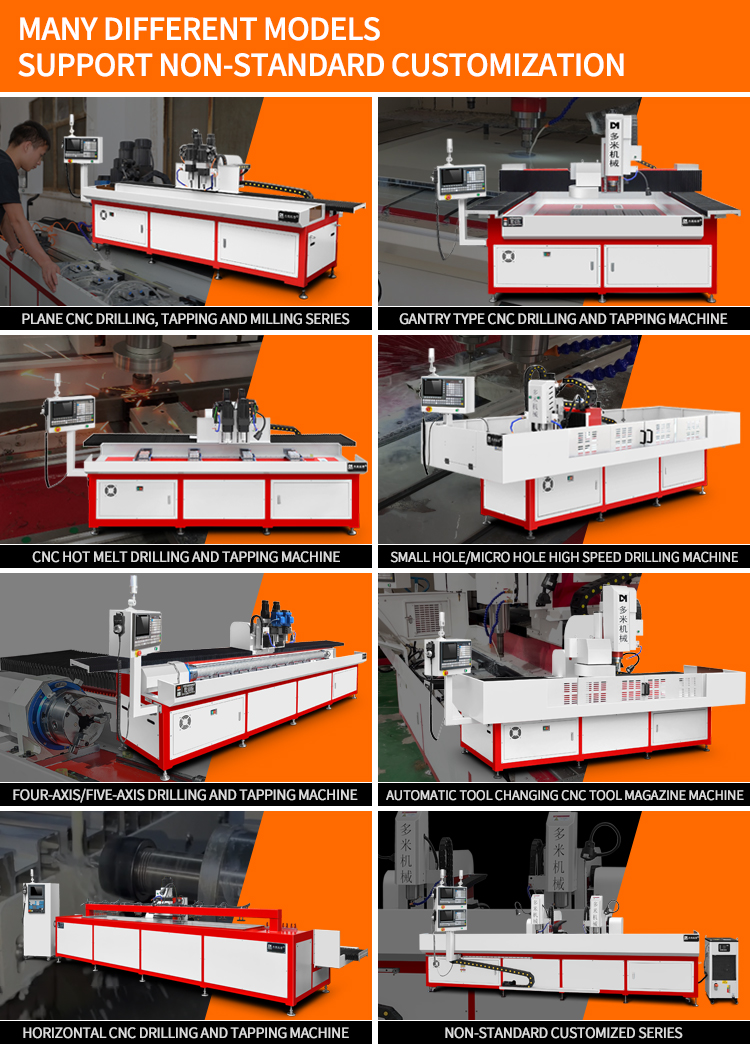

Flow Drill Drilling and Tapping Machine CNC Drilling and Tapping Machine Small Micro Hole CNC Drilling Machine Gantry CNC Drilling and Tapping Machine 4-axis 5-axis Drilling Tapping Machine Customized Drilling and Tapping Machine Visual Positioning Drilling Slotting Machine Automatic Metal Profile Drilling Machine

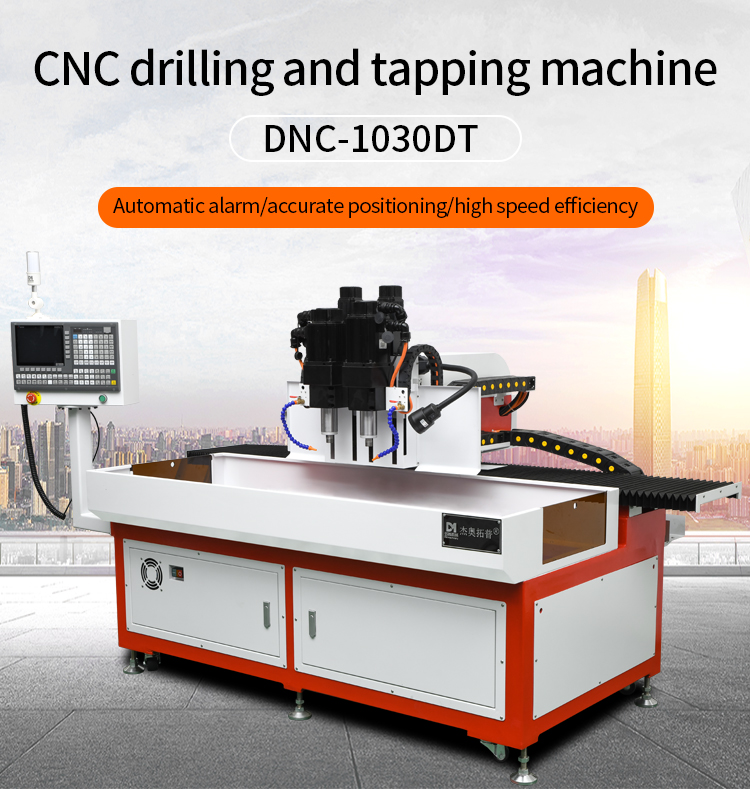

DNC-1030DT Precision 3 Axis CNC Machine Steel Metal Sheet Drill Press 2 Spindles Machines Drilling Tapping Milling Machine

DUOMI CNC's 3-Axis CNC Steel Metal Drill Press: Heavy-duty, rigid 3-axis drilling center delivers fast, accurate holes and tapping in steel plates & structural parts.

Product Paramenters

Machine type	DNC-1030DT

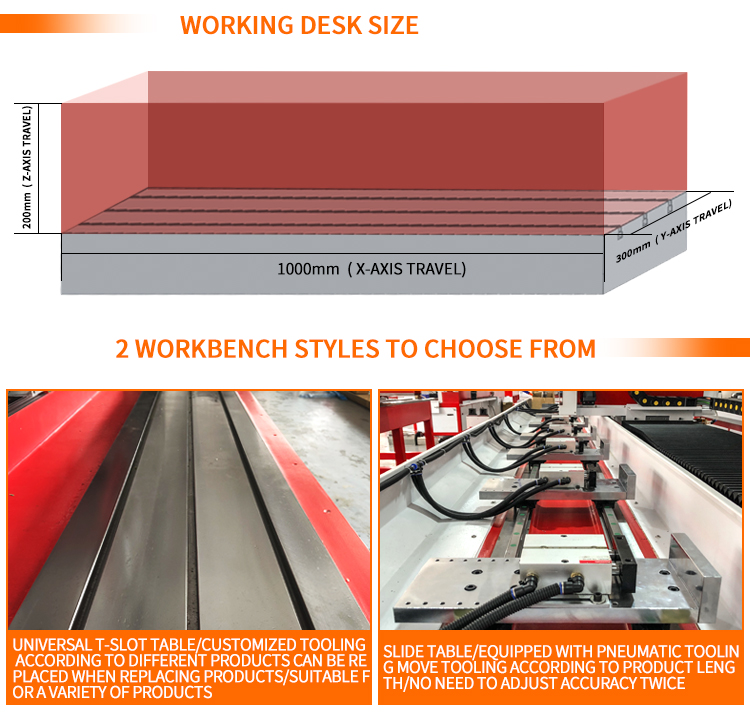

XYZ three-axis machining stroke0	X1000mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	1000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1100KG
Floor space	250015001700mm
