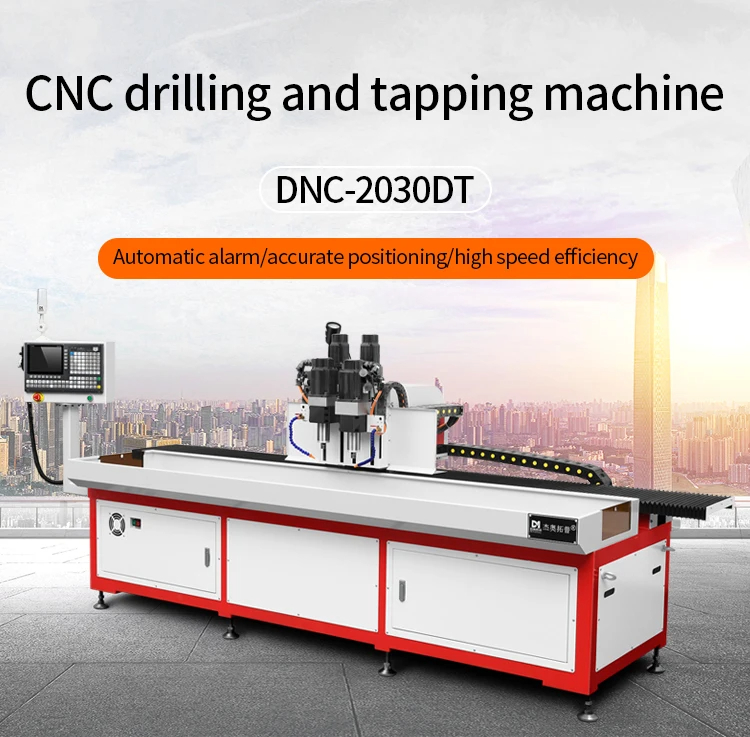

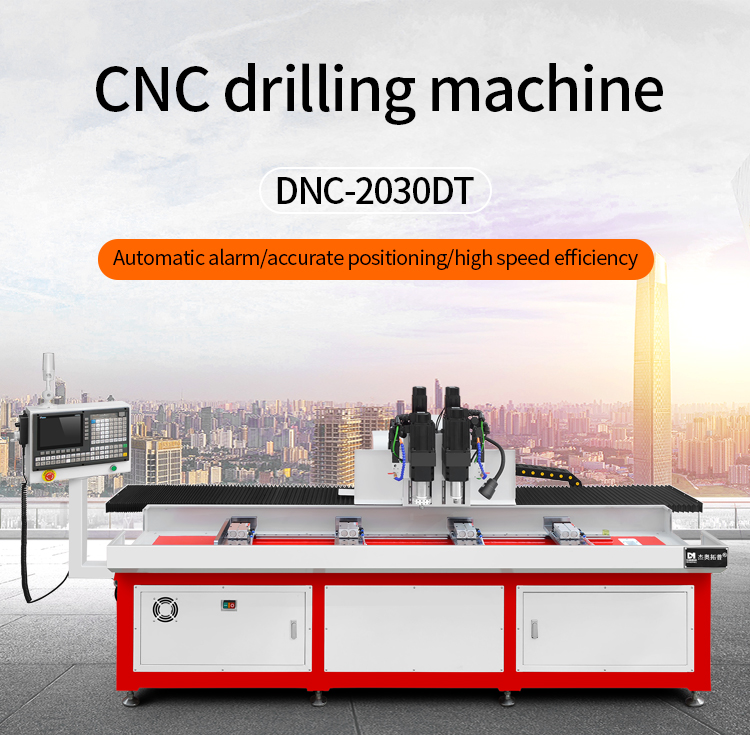

DNC-2030DT Automatic Vertical 3 Axis CNC Aluminium Steel Metal Tap M2-M14 Drill Press 1-20mm 3 Spindles Drilling Tapping Machine

DUOMI CNC’s M2-M14 Drill Press provides precise drilling for small to medium metal components, ensuring high efficiency, consistent quality, and reliable performance in production.

Product Paramenters


Machine type	DNC-2030DT

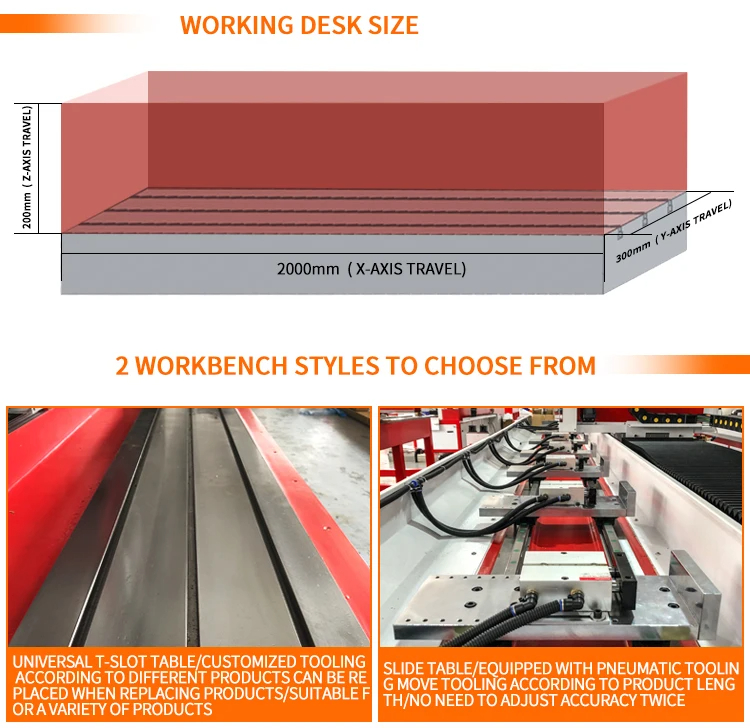

XYZ three-axis machining stroke0	X2000mm Y300mm Z200mm
Spindle speed	100~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Chamfer range	1~20mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	2000*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1600KG
Floor space	350015001700mm
