DNC-640DR Five-axis Drilling Tapping CNC Machine Gear Oil Filling Hole Multi-angle

Bevel Drilling Drill Press Tube Sheet Profile

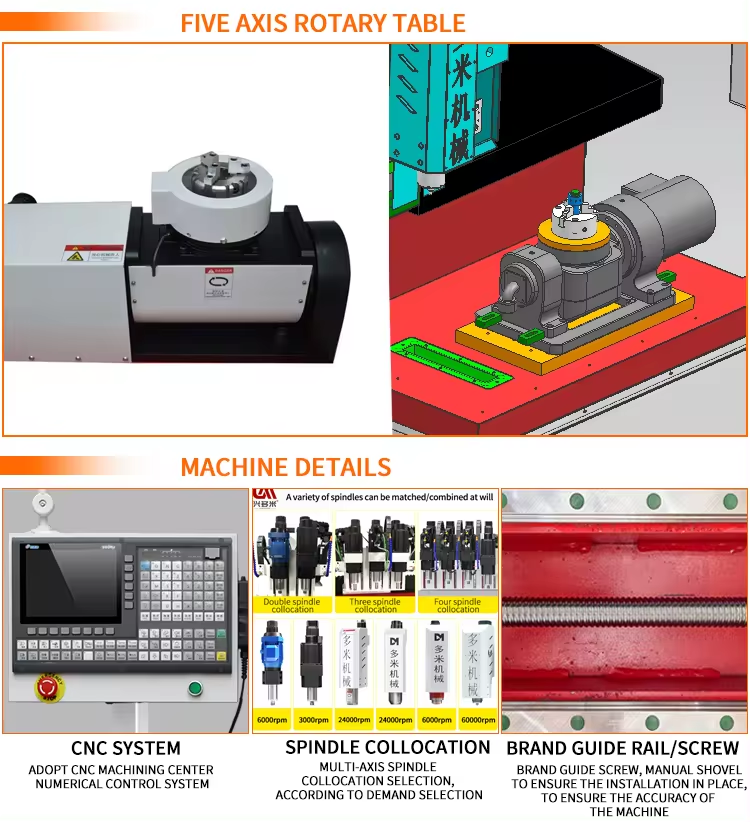

DUOMI CNC’s Five-Axis Drilling Tapping Machine enables multi-angle drilling and threading for metal parts, ensuring precise, efficient, and consistent high-quality production.

Machine type	DNC-640 five-axis
XYZAB axis machining stroke	X600mm Y400mm Z200mm A360° B180°
Spindle speed	1500~60000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55-3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~16mm
Tool magazine	Manual tool change/pneumatic press tool change
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 600KG
Floor space	120010001700mm
