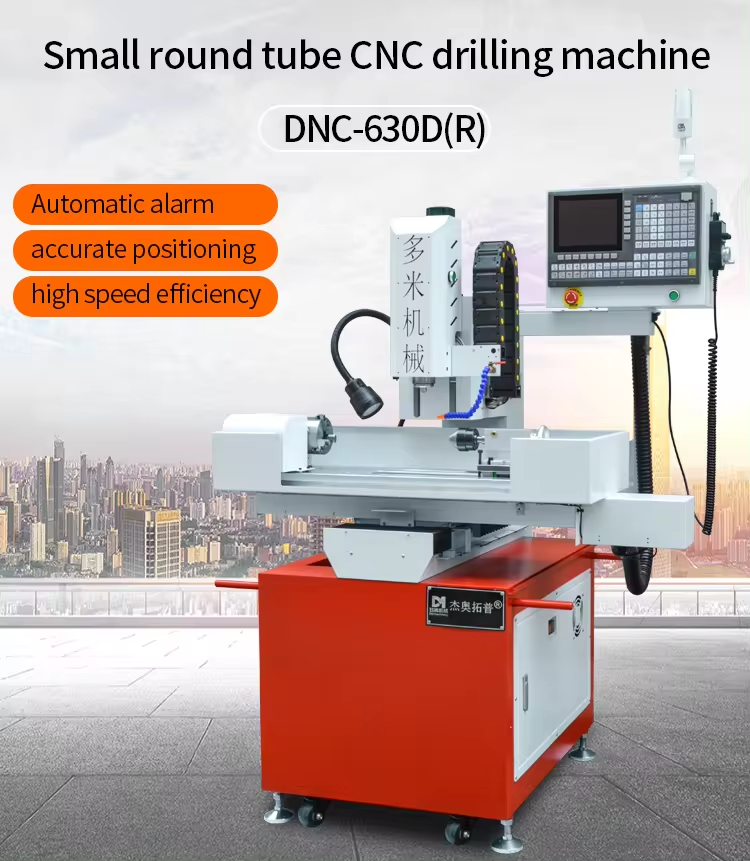

DNC-630D(R1) Precision 4 Axis CNC Metal Square Round Profile Pipe Tube Drill Press Aluminium Steel Borehole Drilling Machine

DUOMI CNC’s Manual Tool Change Drilling Press offers precise, reliable drilling with easy tool swaps, ensuring consistent quality and efficiency for metal fabrication tasks.

Product Paramenters

Machine type	DNC-630D(R)

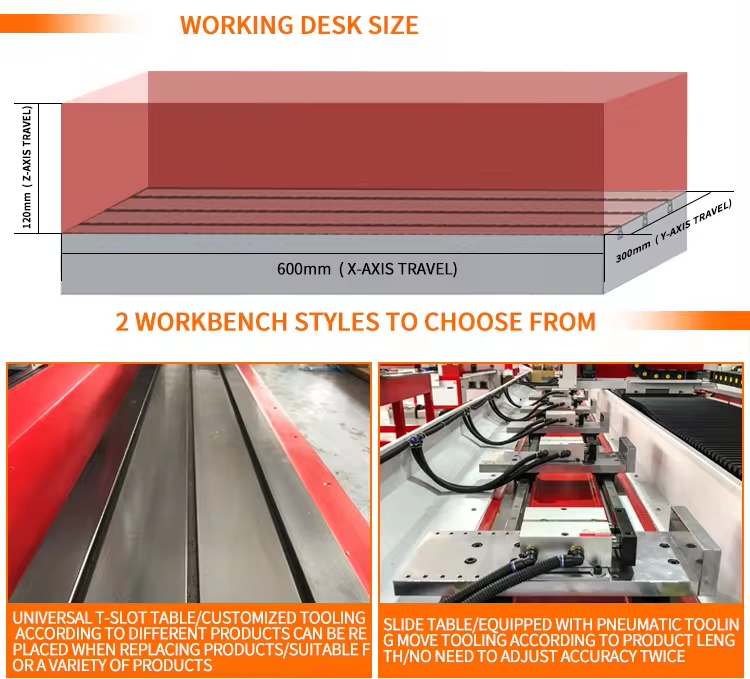

XYZ three-axis machining stroke0	X600mm Y300mm Z120mm
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~14mm
Chamfer diameter range	1~14mm
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table size	600*280mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 500KG
Floor space	10009001700mm
