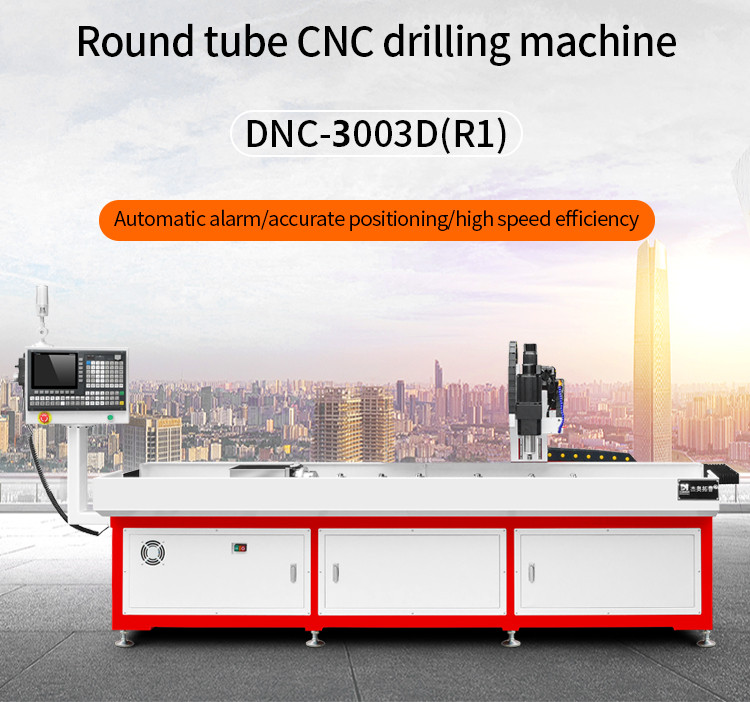

DNC-3003D(R1) Precision 4 Axis CNC Drilling Machine for Square Round Flat

Aluminium Steel Copper Metal Alloy Profile Tube Sheet

DUOMI CNC’s Tube Sheet Drilling Machine provides precise, efficient drilling for metal tube sheets, ensuring consistent quality and high productivity in industrial applications.

Product Paramenters

Machine type	DNC-3003D（R1）

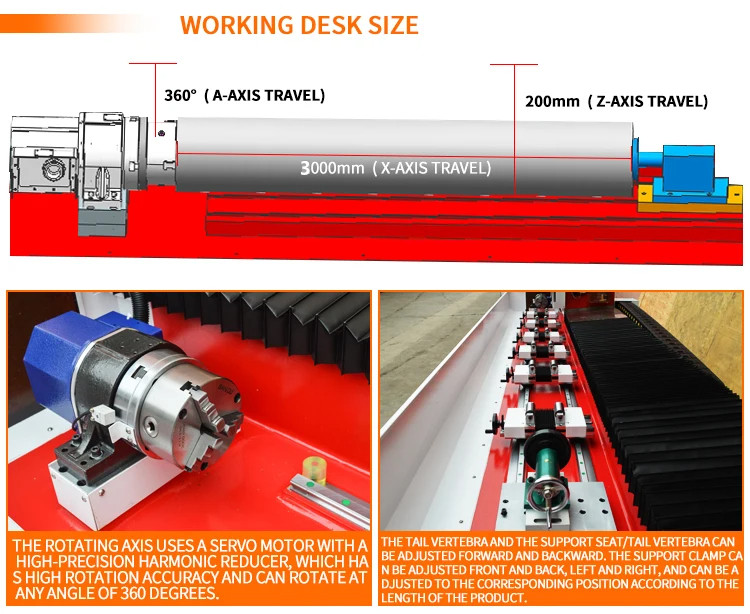

XYZ three-axis machining stroke0	X3000mm Z200mm A360°
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter	M2~M14
Clamping diameter of rotating shaft	10~200mm（Selection on demand）
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 2000KG
Floor space	420015001700mm
