DNC-1003N6 4-Axis CNC Drilling Machine Front Back and Top Side Drilling Tapping

Aluminium Profile 6 Tools Automatic Tool Change

The DUOMI CNC 4-Axis CNC Drilling Machine offers precise multi-side drilling for metal parts, boosting efficiency and accuracy in modern industrial production.

Product Paramenters

Machine type	DNC-1003N6

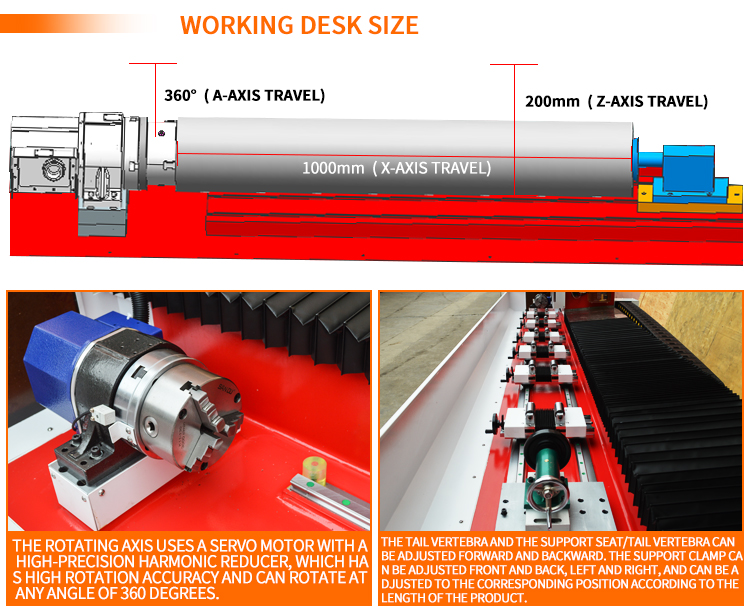

XYZ three-axis machining stroke0	X1000mm Z200mm A360°
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter	M2~M14
Clamping diameter of rotating shaft	10~200mm（Selection on demand）
Tool magazine	Automatic tool change 6 tools
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1000KG
Floor space	220015001700mm
