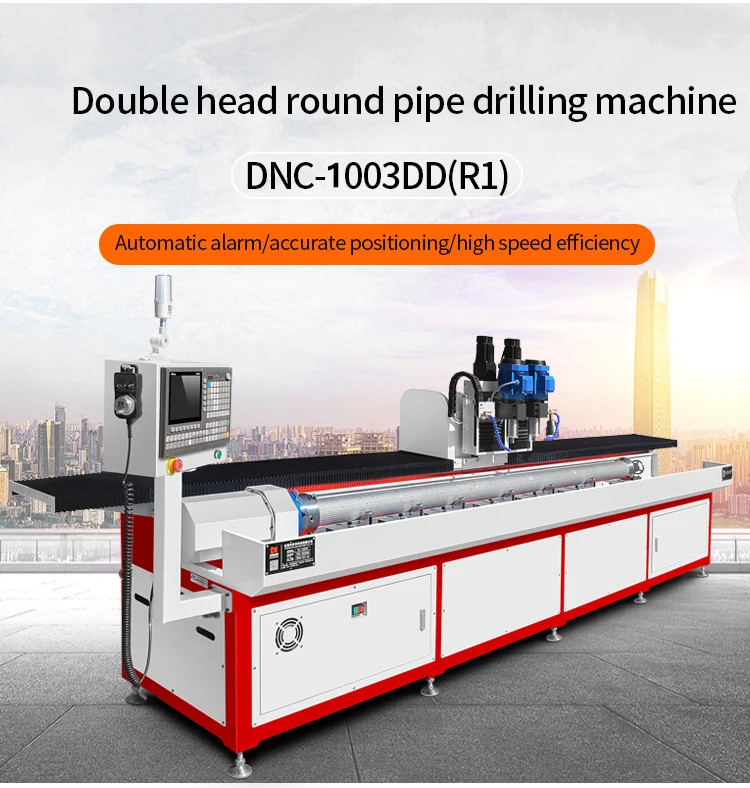

DNC-1003DD(R1) Automatic Rotation Axis 2 Spindles CNC Drill Press 4-axis Metal Square

Round Pipe Drilling And Tapping Machine

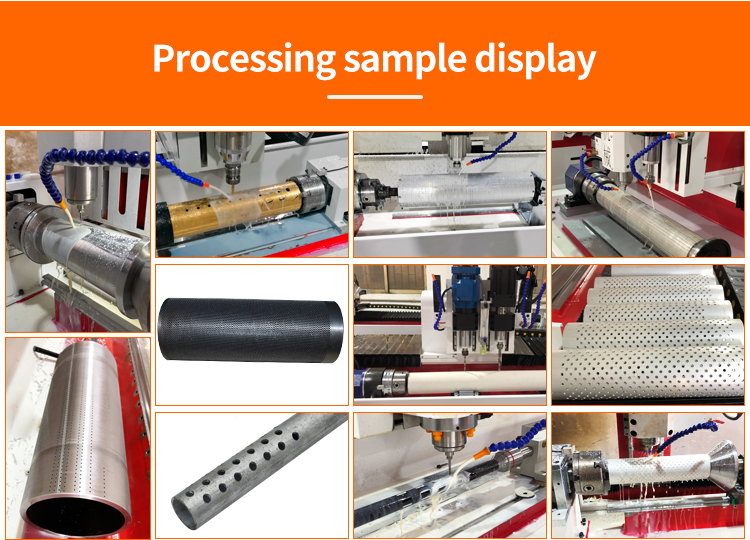

DUOMI CNC’s Metal Round Pipe Drilling Tapping Machine delivers precise drilling and threading for steel, aluminum, and copper pipes, ensuring high efficiency and consistent quality.

Product Paramenters


Machine type	DNC-1003DD（R1）

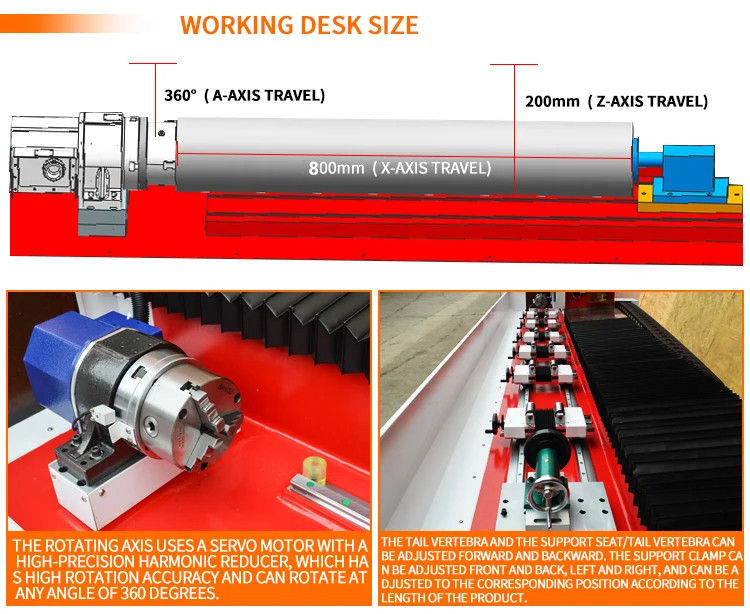

XZA three-axis machining stroke0	X800mm Z200mm A360°
Spindle speed	1500~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M16
Chamfer diameter range	1~20mm
Rotating shaft clamping diameter	10~200mm（Selection on demand）
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 1000KG
Floor space	2200mm1500mm1700mm
